Scaffolding Solid U Head

Scaffolding Solid U Head

Short Description:

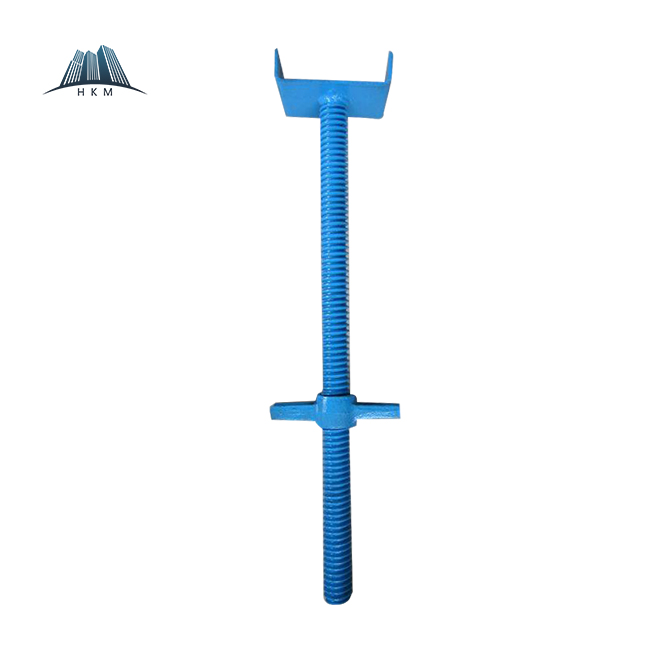

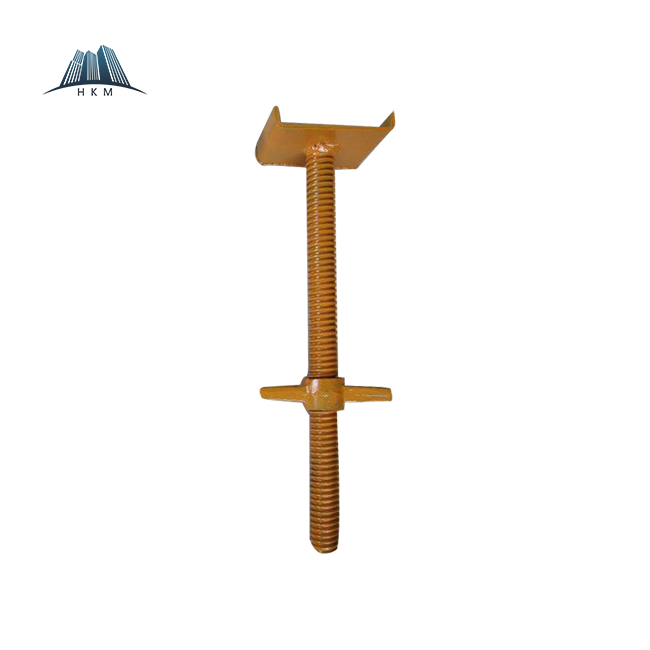

Scaffolding solid U head serves as a critical adjustment component in construction support systems, integrating load-bearing, and fixing functions. Manufactured from high-strength steel, its U-shaped groove top securely supports steel pipes, I-beams, and other materials, while the bottom screw adjustment mechanism enables precise height adjustment to meet leveling requirements across various ground conditions.This component features exceptional load-bearing capacity, convenient adjustment, anti-slip and shock-resistant properties, with electro-galvanized surface treatment ensuring long-term corrosion resistance in outdoor environments. Widely used in cast-in-place concrete formwork support, bridge construction, and steel structure installation, it can be quickly paired with scaffold uprights to establish a stable support system.It significantly enhances construction safety and efficiency, making it a standardized core component in modern formwork and scaffolding systems.


  • Feature: Adjustable
  • Type: Solid/ Hollow

Product Detail

Product Tags

Description:

Scaffolding solid U head is a crucial adjustment component in scaffolding systems, primarily used for formwork support and heavy-duty construction applications. Manufactured from high-strength Q235B round steel, it features a U-shaped groove design at the top to securely hold steel pipes, I-beams, and other materials, ensuring even load distribution.
As an indispensable element in every scaffolding system, Scaffolding solid U head provides effective solutions. It serves as an ideal support solution for various projects, including buildings, bridges, tunnels, and civil engineering structures, and is widely used in construction and industrial plant support systems.
It offers three core advantages:
Exceptional load-bearing capacity;
Convenient adjustment—millimeter-precise leveling achieved simply by rotating the screw rod;
Superior durability—hot-dip galvanized surface treatment ensures excellent corrosion resistance in outdoor environments.


ADJUST BASE JACK
Type U Head Jack Base Swivel Jack Base Base Plate
Weight 1.0-5.0kg 1.0-5.0kg 1.0-5.0kg 1.0-3.0kg
Material Q235 or 20# Steel Q235 or 20# Steel Q235 or 20# Steel Q235 or 20# Steel
Diameter 28/30/32/34/35/
38/48MM etc		 28/30/32/34/35/
38/48MM etc		 28/30/32/34/35/
38/48MM etc		 28/30/32/34/35/
38/48MM etc
200/300/600/750mm etc, or customized 200/300/600/750mm etc, or customized 200/300/600/750mm etc, or customized 100/150mm
or customized
Plate Size 120*100*50*4/5mm
150*120*50*4/5mm etc,or customized		 120*120*4/5mm 150*150*4/5mm etc,or customized 120*120*4/5mm 150*150*4/5mm etc,or customized 120*120*4/5mm 150*150*4/5mm etc,or customized
Surface Treatment Natural ,painted,
Electro
galvanized,HDG		 Natural ,painted,
Electro
galvanized,HDG		 Natural ,painted,
Electro
galvanized,HDG		 Natural ,painted,
Electro
galvanized,HDG
Color Black,silver,or colorful galvanized Black,silver,or colorful galvanized Black,silver,or colorful galvanized Black,silver,or colorful galvanized


Parameter:

Product Name: Scaffolding adjustable base jack/ Screw jack/ Jack base/ Leveling jack

Application: Construction work site

Design Style: Modern

Place of Origin: China

Material: Q235

Color: Silver

Packing: Pallet

Diameter: 28/30/32/34/35/38/48MM etc

Plate: 120*120*4MM 150*150*5MM or Customized size

Surface Treatment: Painted/ Electro galvanized/ Hot dip galvanized


Selling Units:Single item

Single package size:15x15x70cm

Single gross weight:2.8kg

Supply Ability: 280000 pieces per month



FAQ

  1. 1.Q: How do you guarantee the quality?

A: We usually produce a sample and test it before mass production. Besides, we have CE certification for our scaffolding products.



  1. 2.Q: What's your payment term?

A: 30% deposit and 70% balance by TT or L/C before loading.



  1. 3.Q: Where is your factory?

A: Our factory is in Tianjin.



  1. 4.Q: Can I visit your factory?

A: Of course. Welcome to visit our factory.
