Spanish Type Steel Prop

Spanish Type Steel Prop

Short Description:

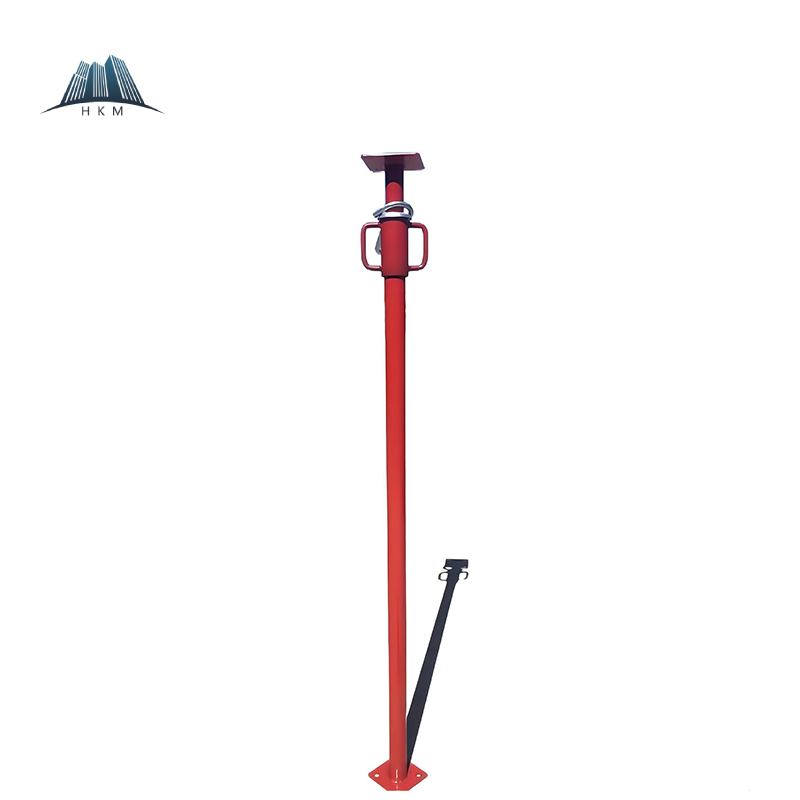

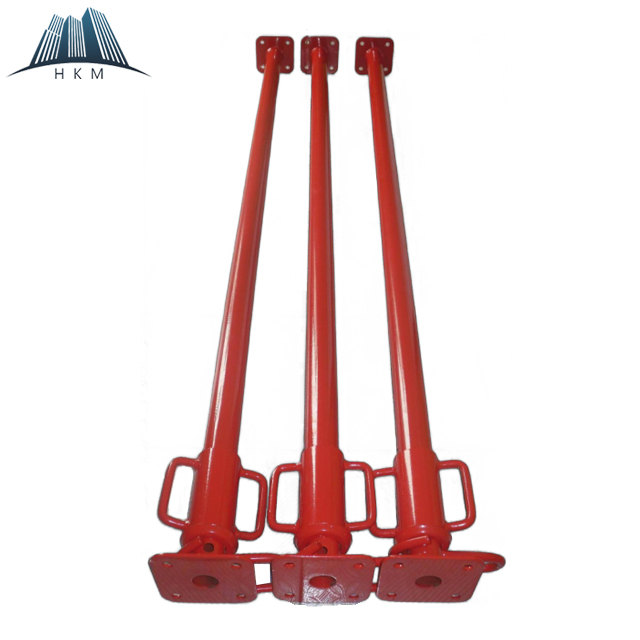

Spanish Type Steel Prop is an adjustable temporary support system widely used in construction, known for its high strength, durability and flexibility. The support system is usually made of high-quality Q195 or Q235 carbon steel materials to ensure excellent load-bearing capacity and compressive resistance. Its standard sizes cover a variety of specifications, with an outer tube diameter of usually 48mm, an inner tube diameter of usually 40mm, a steel tube thickness of 1.5-2.5mm, and adjustable length. Common models include 1600-2900mm, 2000-3600mm and 2200-4000mm, supporting personalized customization to meet different construction needs. Spanish Type Steel Prop provides a variety of surface treatment protection processes, including hot-dip galvanized, painted, powder coated, electro-galvanized and pre-galvanized to meet the anti-corrosion requirements in different environments. Structurally, the support is mainly composed of an outer tube (fixed tube), an inner tube (movable tube) and an adjustment mechanism (pin hole or threaded). Some models are equipped with a reinforced base and U-shaped top support to enhance stability and load-bearing capacity.


  • Brand Name: Kosun Steel Prop
  • Model Number: Adjustable Steel Prop
  • Shape: Middle East / Italian/ German type
  • Surface treatment: Galvanized / Painted

Product Detail

Product Tags

Description:

Spanish Type Steel Prop is an adjustable temporary support system designed for construction and engineering. It is the preferred solution in the field of formwork support for its high strength, durability and flexible adjustment ability. The support system is made of high-quality carbon steel materials (such as Q195, Q235) to ensure excellent compressive and load-bearing capacity, suitable for various construction scenarios, including high-rise buildings, bridges, tunnels and industrial plants. Its standard size is 48/40mm, and the length can be adjusted in a wide range. It can be customized according to needs, and precise height adjustment can be achieved through pin holes or threaded mechanisms to meet different construction needs. Spanish Type Steel Prop is mainly used for formwork support during concrete pouring to ensure the stability of structures such as floor slabs, beams and columns. It can also be used for temporary reinforcement projects, such as short-term load-bearing support in bridge construction. Its modular design supports rapid installation and reuse, greatly improving construction efficiency, while the reinforced base (such as square or flower-shaped base plates) and U-shaped top support design enhance overall stability and prevent lateral deviation during construction. In terms of surface treatment, the support provides a variety of anti-corrosion options, including hot-dip galvanized, painting, powder coating, electro-galvanized and pre-galvanized to adapt to different environmental conditions. In addition, the lightweight design of the Spanish steel prop is convenient for transportation and on-site adjustment, further reducing construction costs. Whether it is a commercial building, infrastructure or industrial project, the support system can provide reliable structural protection and become an indispensable and efficient tool in modern construction.


Middle East Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
2.2m 4.0m 48mm 60mm 1.5-4.0mm
2.5m 4.5m 48mm 60mm 1.5-4.0mm
3.6m 5.0m 48mm 60mm 1.5-4.0mm
Spanish Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 40mm 48mm 1.5-2.5mm
2.0m 3.6m 40mm 48mm 1.5-2.5mm
2.2m 4.0m 40mm 48mm 1.5-2.5mm
Italian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 48mm 56mm 1.5-2.5mm
2.0m 3.6m 48mm 56mm 1.5-2.5mm
2.2m 4.0m 48mm 56mm 1.5-2.5mm
North America Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
3'6''(1.06m) 6'(1.83m) 48mm 60mm 1.5-4.0mm
5'9''(1.75m) 10'3''(3.12m) 48mm 60mm 1.5-4.0mm
6'6''(1.98m) 11'(3.35m) 48mm 60mm 1.5-4.0mm
8'6''(2.59m) 13'(3.96m) 48mm 60mm 1.5-4.0mm
10'6''(3.2m) 15'6''(4.72m) 48mm 60mm 1.5-4.0mm
Australian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.1m 1.9m 48mm 60mm 1.5-4.0mm
2.1m 3.57m 48mm 60mm 1.5-4.0mm
2.1m 3.8m 48mm 60mm 1.5-4.0mm

Parameter:

Place of Origin: Tianjin, China

Brand Name: Kosun

Scaffolding Type: Scaffolding Prop

Application: Building Construction

Surface treatment: Galvanized / Painted

Length: Customized

Diameter: 40/48mm, 48/56mm, 48/60mm

Tube Thickness: 1.5mm-4.0mm

MOQ: 200pcs / Negotiated


Selling Units: Single item

Single package size: 15x15x230cm

Single gross weight: 10.5kg

Supply Ability: 110000 pieces per month



FAQ

  1. 1.Q: Are you A manufacturer or trader?

A: We are a manufacturer of building materials with a reputation for cost-effective products.



  1. 2.Q:What are your payment terms?

A: T/T 30% deposit and 70% balance before loading.



  1. 3.Q: What is the delivery time?

A: Delivery within 15-30 days after receipt of deposit or L/C at sight. It depends on product and quantity.



  1. 4.Q: What is your packing method?

A: We use steel strip and pack it sturdily. We can also package according to your requirements.
