Scaffolding hollow jack is a key leveling component applicable to various scaffolding systems, including coupler-type steel tube scaffolding and ringlock scaffolding. According to its structural characteristics, it is mainly divided into four types: solid base jack, hollow base jack, U-shaped jack, and standard-type jack. This component has a standard length ranging from 300mm to 1000mm. By rotating the adjusting nut, precise height adjustment can be achieved, which effectively solves the problem of scaffold stability caused by uneven construction sites.

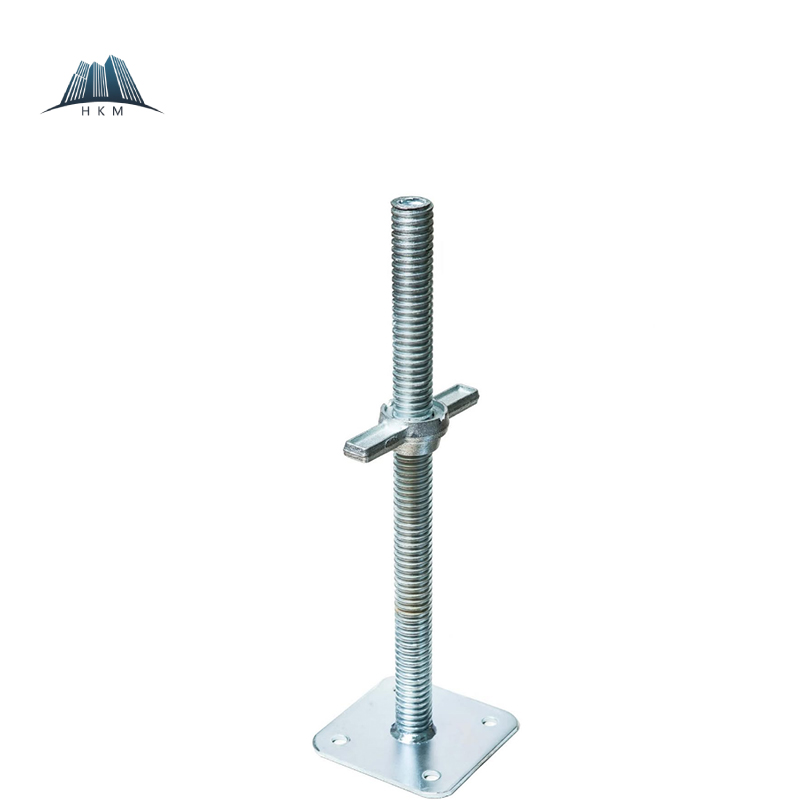

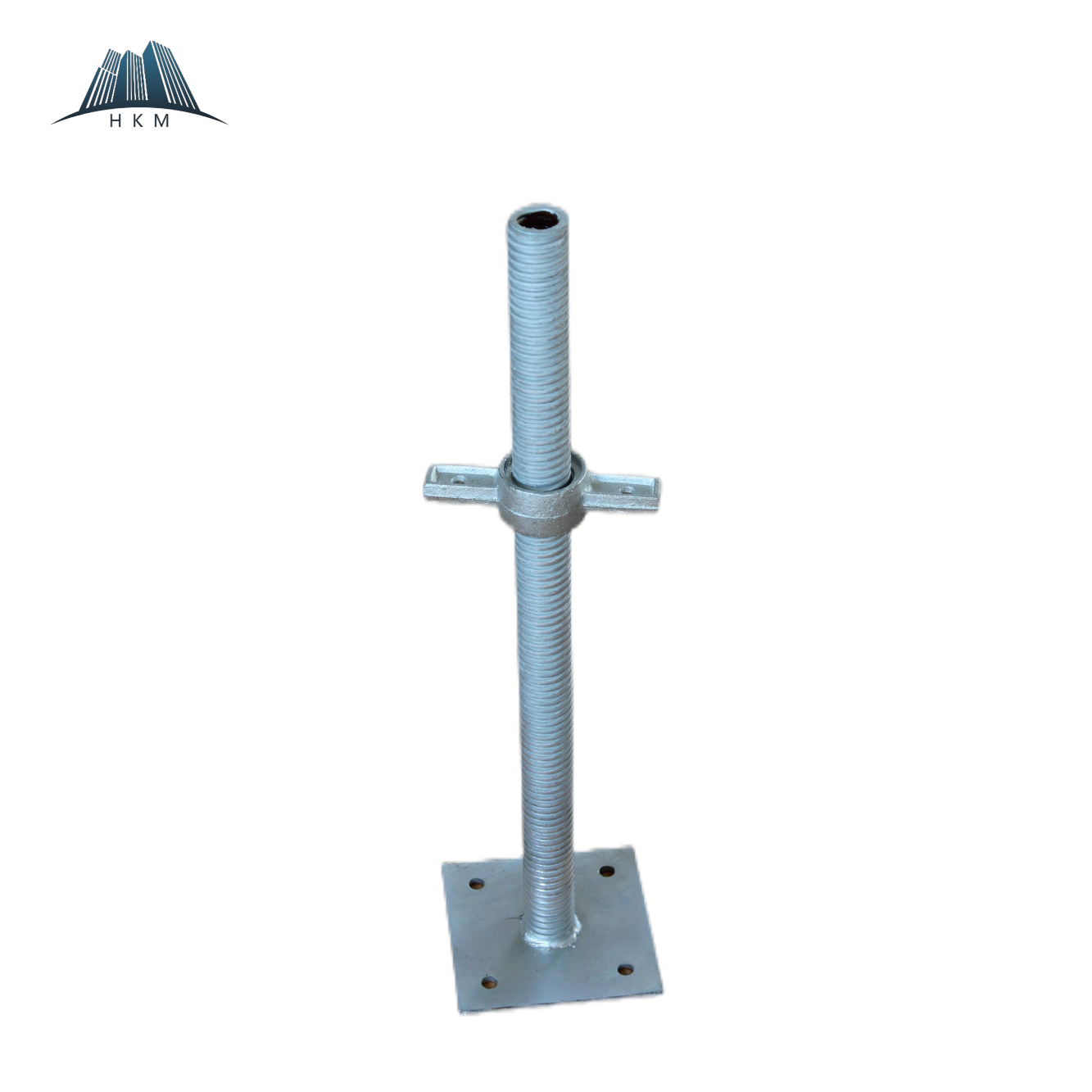

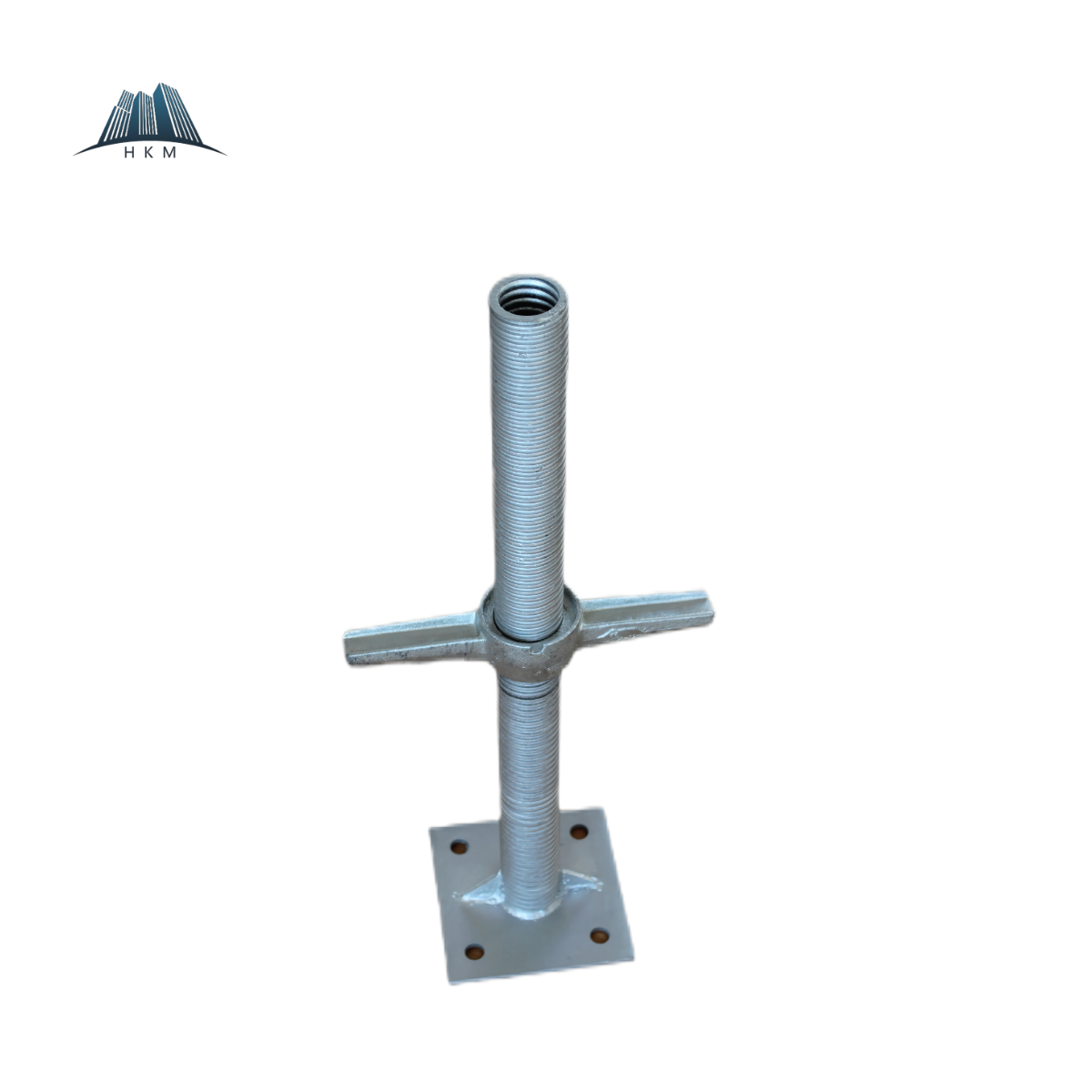

Scaffolding Hollow Jack
Description:
Scaffolding hollow jack is a key adjustment device ensuring the safety of scaffolding construction. As a core component connecting the ground and the scaffolding structure, its performance directly affects the stability of the entire support system. This component is made of high-quality Q235B carbon steel. A 4mm-thick square base plate (with standard sizes of 150×150mm or 200×200mm) is welded at the bottom, and the surface of the base plate is provided with anti-slip to enhance friction. Through a precision-machined trapezoidal thread transmission mechanism (with a pitch of 8mm), combined with an adjusting nut forged from steel, precise lifting adjustment can be realized, with an adjustment accuracy of ±1mm. Its innovative double-nut anti-loosening design can effectively prevent thread slippage caused by construction vibration. It is widely used in construction, bridge engineering, and other fields, making it an ideal choice for ensuring safety, improving efficiency, and reducing costs in modern building construction.
 |
 |
| ADJUST BASE JACK | ||||
| Type | U Head | Jack Base | Swivel Jack Base | Base Plate |
| Weight | 1.0-5.0kg | 1.0-5.0kg | 1.0-5.0kg | 1.0-3.0kg |
| Material | Q235 or 20# Steel | Q235 or 20# Steel | Q235 or 20# Steel | Q235 or 20# Steel |
| Diameter | 28/30/32/34/35/ 38/48MM etc |
28/30/32/34/35/ 38/48MM etc |
28/30/32/34/35/ 38/48MM etc |
28/30/32/34/35/ 38/48MM etc |
| 200/300/600/750mm etc, or customized | 200/300/600/750mm etc, or customized | 200/300/600/750mm etc, or customized | 100/150mm or customized |
|
| Plate Size | 120*100*50*4/5mm 150*120*50*4/5mm etc,or customized |
120*120*4/5mm 150*150*4/5mm etc,or customized | 120*120*4/5mm 150*150*4/5mm etc,or customized | 120*120*4/5mm 150*150*4/5mm etc,or customized |
| Surface Treatment | Natural ,painted, Electro galvanized,HDG |
Natural ,painted, Electro galvanized,HDG |
Natural ,painted, Electro galvanized,HDG |
Natural ,painted, Electro galvanized,HDG |
| Color | Black,silver,or colorful galvanized | Black,silver,or colorful galvanized | Black,silver,or colorful galvanized | Black,silver,or colorful galvanized |
Parameter:
Warranty:1 year
After-sale service:Online technical support/Other
Design Style:Industrial
Project Solution Capacity:Graphic design/Other
Place of Origin:CHINA
Brand name:HKM
Product Name:Fabricación en la cual
Color:Silver/Red/Blue/Green/Others
Technique:Electric Resistance Welding
MOQ:200 pcs
Type:Solid and Hollow
Diameter:27mm/28mm/30mm/32mm/34mm/38mm/48mm
Adjustable length:300-1100mm
Thickness of hollow jack:3.75-6.0mm
Material:Q235
Surface Treatment:Black/Painted/Powder Coated/Electro-Galvanized/Hot-Dipped Galvanized
 |
 |
Selling Units:Single item
Single package size:15x15x70cm
Single gross weight:2.8kg
Supply Ability: 280000 pieces per month
FAQ
1.Q:What is the advantage of your company ?
A: We have own factory, which is located in Tianjin,China. We are a leading company in producing and exporting scaffolding products etc. We can produce and deliver your products in a very short time so that can save our cost.
2.Q: How about the price?
A: Really competitive! Our company is near the origin of steel and we have big order amount, so we get cheaper price of steel raw material; low labor cost and near Xingang sea port are also our advantages. The most of all,“less profit but big turnover” is our perpetual business principle.
3.Q: How about the quality of products in your company?
A: Our products are of high quality, and our products get lots of good feedback from our clients all over the world. We will make quality inspection before loading every time. And we usually keep our customer complaints below 1%.
4.Q: Could you provide free samples?
A: Of course, we can provide you with free samples.
A: We have own factory, which is located in Tianjin,China. We are a leading company in producing and exporting scaffolding products etc. We can produce and deliver your products in a very short time so that can save our cost.
2.Q: How about the price?
A: Really competitive! Our company is near the origin of steel and we have big order amount, so we get cheaper price of steel raw material; low labor cost and near Xingang sea port are also our advantages. The most of all,“less profit but big turnover” is our perpetual business principle.
3.Q: How about the quality of products in your company?
A: Our products are of high quality, and our products get lots of good feedback from our clients all over the world. We will make quality inspection before loading every time. And we usually keep our customer complaints below 1%.
4.Q: Could you provide free samples?
A: Of course, we can provide you with free samples.
