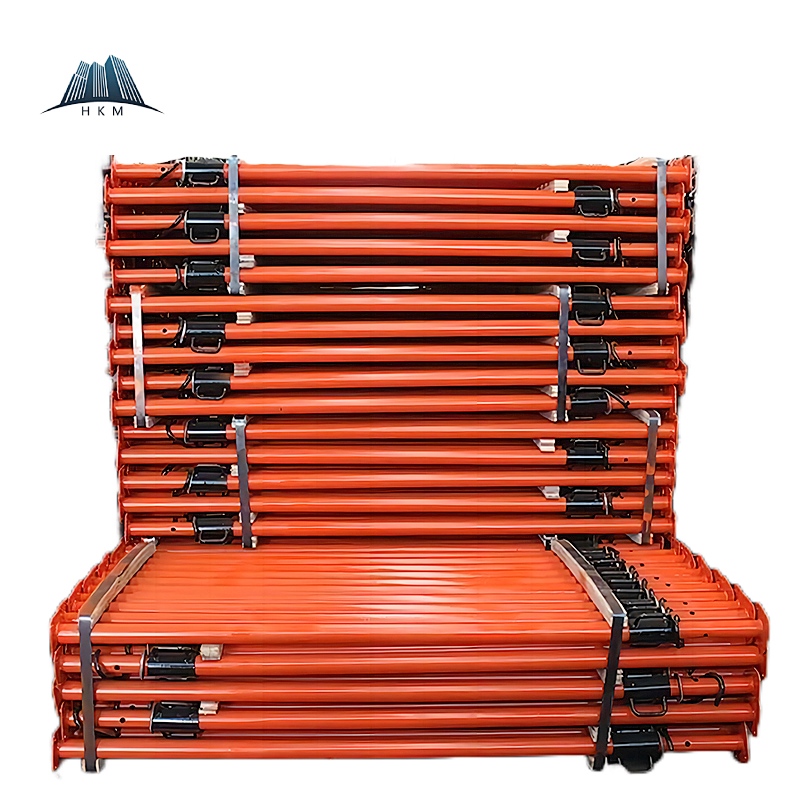

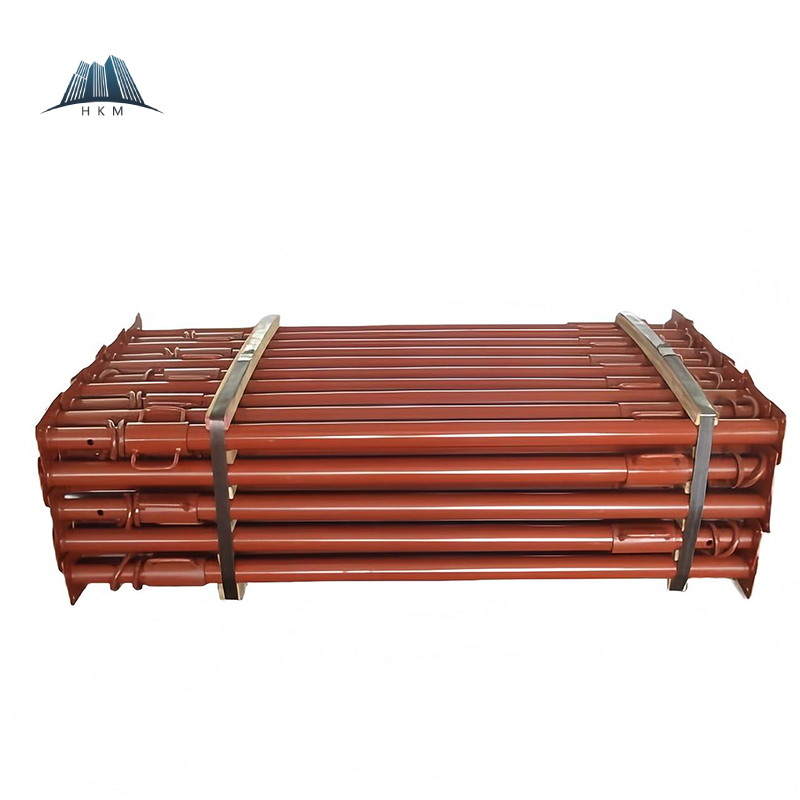

56/48 Square Plate Steel Prop

56/48 Square Plate Steel Prop

Short Description:

56/48 Square Plate Steel Prop is an adjustable temporary support system widely used in construction, known for its high strength and durability. The support system is usually made of high-quality carbon steel materials, such as Q195 and Q235, to ensure excellent load-bearing capacity and compressive resistance. Its standard sizes cover a variety of specifications, usually with an outer tube diameter of 56mm, an inner tube diameter of 48mm, a thickness of 1.5-2.5mm, and adjustable and customizable lengths. Common models include 1600-2900mm, 2000-3600mm, and 2200-4000mm. In terms of surface treatment, hot-dip galvanized, painted, powder coated, electro-galvanized and pre-galvanized are provided to meet the anti-corrosion requirements in different environments. Structurally, the support is mainly composed of an outer tube (fixed tube), an inner tube (movable tube) and an adjustment mechanism (pin hole or threaded). Some models are equipped with a reinforced base and a U-shaped top support to enhance stability and load-bearing capacity.


  • Feature: Adjustable
  • Color: Customized Color
  • Surface treatment: Painted/ Galvanized

Product Detail

Product Tags

Description:

56/48 Square Plate Steel Prop is an adjustable temporary support system designed for modern building construction. It is widely used in scenes such as concrete pouring, formwork support and temporary structure reinforcement due to its high strength, modular design and fast installation characteristics. The support system is made of high-quality carbon steel (such as Q195, Q235) to ensure excellent compression and load-bearing capacity. It also provides a variety of surface treatment processes, including hot-dip galvanized (HDG), painted, powder coated, pre-galvanized and electro-galvanized, to meet the anti-corrosion needs of different construction environments. Its standard size is 48/56mm, with a wide range of adjustable lengths. It can achieve precise height adjustment through pin holes or threaded mechanisms to meet different construction needs. It is mainly used for temporary support of concrete structures to ensure the stability of components such as floor slabs, beams and columns. It can also be used for short-term reinforcement of projects such as bridges and tunnels. Its modular design supports rapid installation and reuse, greatly improving construction efficiency, while the reinforced base and U-shaped top support design enhance the overall stability and prevent lateral deviation during construction. In addition, the support system complies with European standards (such as EN74/BS1139) and is suitable for various construction scenarios, including office buildings, industrial plants and infrastructure projects. Whether it is high-rise buildings, bridge construction or industrial plant construction, the support system can provide reliable temporary structural protection, with good economy and adaptability. It is an indispensable and efficient tool in modern construction.


Middle East Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
2.2m 4.0m 48mm 60mm 1.5-4.0mm
2.5m 4.5m 48mm 60mm 1.5-4.0mm
3.6m 5.0m 48mm 60mm 1.5-4.0mm
Spanish Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 40mm 48mm 1.5-2.5mm
2.0m 3.6m 40mm 48mm 1.5-2.5mm
2.2m 4.0m 40mm 48mm 1.5-2.5mm
Italian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 48mm 56mm 1.5-2.5mm
2.0m 3.6m 48mm 56mm 1.5-2.5mm
2.2m 4.0m 48mm 56mm 1.5-2.5mm
North America Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
3'6''(1.06m) 6'(1.83m) 48mm 60mm 1.5-4.0mm
5'9''(1.75m) 10'3''(3.12m) 48mm 60mm 1.5-4.0mm
6'6''(1.98m) 11'(3.35m) 48mm 60mm 1.5-4.0mm
8'6''(2.59m) 13'(3.96m) 48mm 60mm 1.5-4.0mm
10'6''(3.2m) 15'6''(4.72m) 48mm 60mm 1.5-4.0mm
Australian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.1m 1.9m 48mm 60mm 1.5-4.0mm
2.1m 3.57m 48mm 60mm 1.5-4.0mm
2.1m 3.8m 48mm 60mm 1.5-4.0mm

Parameter:

Warranty: 1 year

Application: Construction

Place of Origin: China

Product name: Adjustable steel prop

Type: 60/48, 56/48, 48/40mm

Material: Q195/Q235/Q355/STK400/STK500

Surface treatment: Black/ Painted/ Galvanized

Color: Customer Requirements

Advantage: Easy Assembling


Selling Units: Single item

Single package size: 15x15x230cm

Single gross weight: 10.5kg

Supply Ability: 110000 pieces per month



FAQ

  1. 1.Q: Are you a trading company or manufacturer?

A: We are a manufacturer with our own factory. We have more than 15 years’ experience in producing and exporting scaffolding products.

  1. 2.Q: How long is your delivery time?

A: Generally, within 3-7 days after receiving payment if the goods are in stock.

  1. 3.Q: Does the products can be customized?

A: Yes, OEM service is available. We can produce the products according to your requirements.

  1. 4.Q: Do you have relevant certificate?

A: We have CE, SGS and ISO9001 certificates. And we can assist you with any certificate if you need.
