60/48 U head steel prop

60/48 U head steel prop

Short Description:

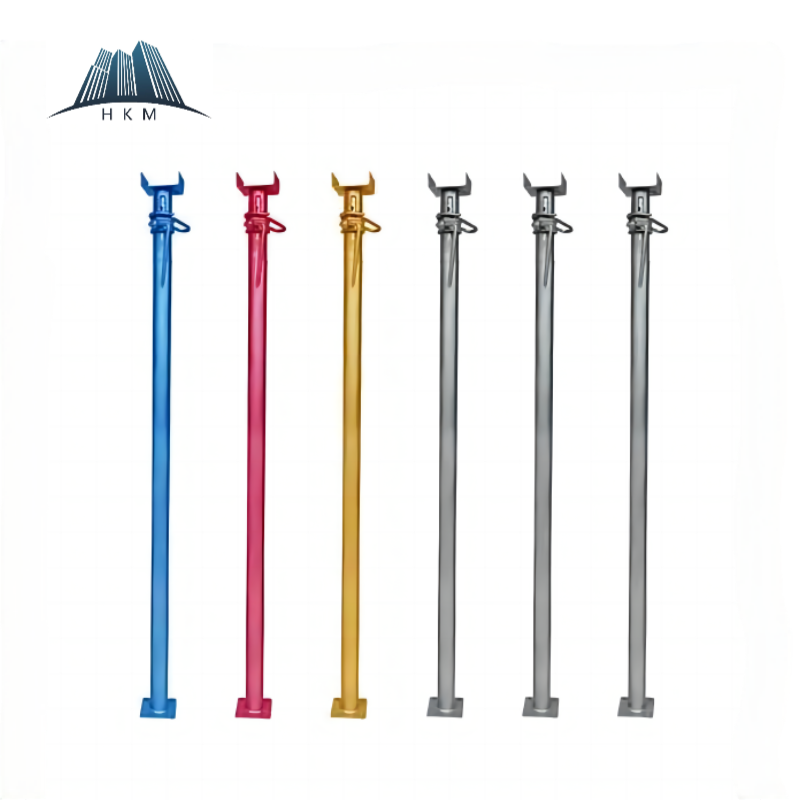

60/48 U-head steel prop is mainly composed of an outer tube, an inner tube, a U-head, a base plate, and adjusting components such as a threaded sleeve and a pin. Among them, the U-head, as a key component, is designed to perfectly fit with I-beams or formwork, ensuring a stable connection.​

The 60/48 U-head steel prop features a reasonably designed structure, allowing for very convenient height adjustment. By rotating the threaded sleeve and inserting the pin into the corresponding hole of the inner tube, the length can be flexibly adjusted within a certain range to meet different construction height requirements.​

This adjustability makes it widely applicable in various construction scenarios, such as formwork support systems and temporary beam supports. When facing the huge pressure and impact force generated during concrete pouring, the special structure of the U-head can evenly distribute the force, preventing deformation or damage caused by local stress concentration.


  • Application: Concrete Formwork Support
  • Thickness: 1.5-4.0mm
  • Package: 50pcs in a bundle

Product Detail

Product Tags

Description:

60/48 U-head steel prop is made of high-quality steel, boasting strong load-bearing capacity. During the concrete pouring and curing stages, it can stably bear huge vertical loads, providing solid and reliable support for the upper structure. When used in conjunction with formwork, the U-head can tightly clamp the formwork, effectively resisting the displacement and deformation of the formwork caused by concrete pressure, thus ensuring the accuracy of the structural shape and dimensions.​

In large-scale construction projects, the massive concrete pouring work poses a great challenge to the load-bearing capacity of the support system. However, the 60/48 U-head steel prop, with its excellent performance, can ensure the safety and stability of the entire construction process, laying a solid foundation for the building quality.​

The high efficiency of installation and disassembly is also one of the significant advantages of the 60/48 U-head steel prop. Its structure is reasonably designed, and the connection of various components is simple and clear. Construction workers can quickly complete the installation and disassembly operations without complex tools or professional skills. This not only greatly shortens the construction period and improves construction efficiency but also reduces labor costs.​


Middle East Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
2.2m 4.0m 48mm 60mm 1.5-4.0mm
2.5m 4.5m 48mm 60mm 1.5-4.0mm
3.6m 5.0m 48mm 60mm 1.5-4.0mm
Spanish Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 40mm 48mm 1.5-2.5mm
2.0m 3.6m 40mm 48mm 1.5-2.5mm
2.2m 4.0m 40mm 48mm 1.5-2.5mm
Italian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 48mm 56mm 1.5-2.5mm
2.0m 3.6m 48mm 56mm 1.5-2.5mm
2.2m 4.0m 48mm 56mm 1.5-2.5mm
North America Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
3'6''(1.06m) 6'(1.83m) 48mm 60mm 1.5-4.0mm
5'9''(1.75m) 10'3''(3.12m) 48mm 60mm 1.5-4.0mm
6'6''(1.98m) 11'(3.35m) 48mm 60mm 1.5-4.0mm
8'6''(2.59m) 13'(3.96m) 48mm 60mm 1.5-4.0mm
10'6''(3.2m) 15'6''(4.72m) 48mm 60mm 1.5-4.0mm
Australian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.1m 1.9m 48mm 60mm 1.5-4.0mm
2.1m 3.57m 48mm 60mm 1.5-4.0mm
2.1m 3.8m 48mm 60mm 1.5-4.0mm

Parameter:

Name: Premium quality adjustable height steel prop

Application: Supporting Scaffolding System

Material: Q235 Steel

Surface treatment: Galvanized or painted

Color: Customer Requirements

Thickness: 1.6/1.8/2.0/2.2/2.5/3.0mm

Size: 1.6-3.0m/1.8-2.5m/2.0-3.5m and so on

Length: 0.8m-6m

Diameter: 40/48 48/56 48/60mm




Packaging Details: By strap in bundle or steel pallet

Selling Units: Single item



FAQ

  1. 1.Q: How to get a quotation?

You can leave your message in our website directly and we will reply to you as soon as possible. Or you can send your offer via below contact ways:

Email: ceo@hkmscaffolding.com

Mobile: +86-13549687337

  1. 2.Q.What’s the payment term?

By T/T or L/C.

  1. 3.Q.What is the lead time?

The production usually is 15-30 days.

  1. 4.Q.What is the package method?

By 50pcs in a bundle or steel pallet. We can also package as your requirements.
