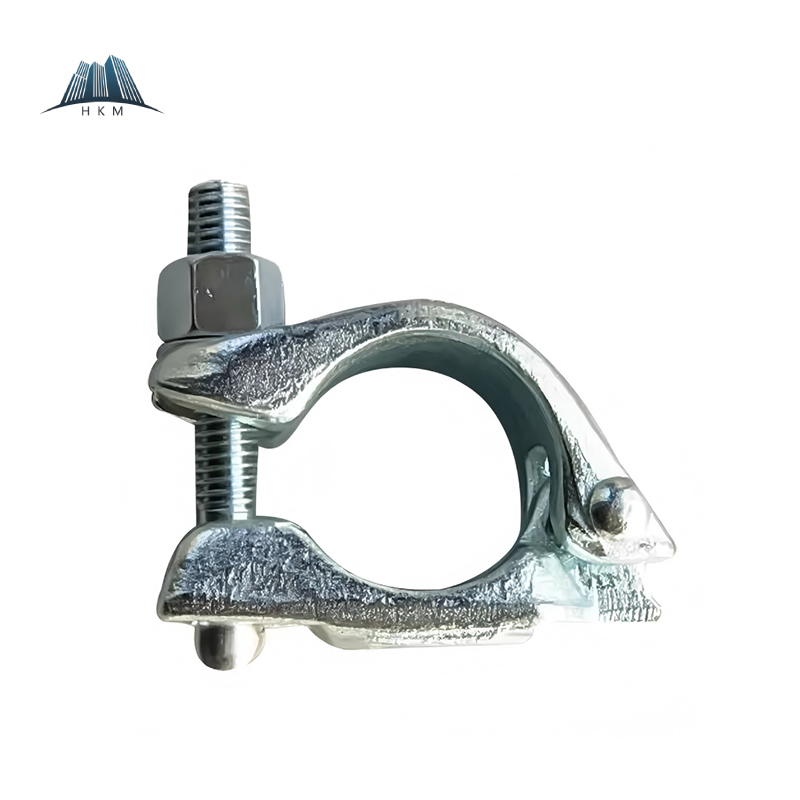

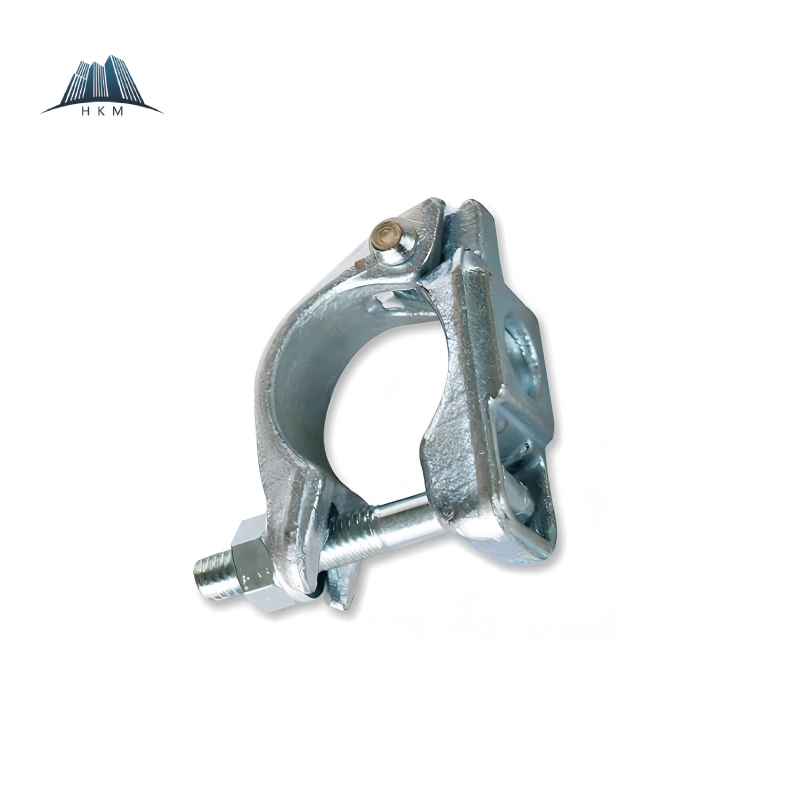

Drop Forged Single Coupler

Drop Forged Single Coupler

Short Description:

Drop Forged Single Coupler is a specialized coupler for single-side connection, used to fix the scaffold steel pipes to walls, structural columns or other fixed surfaces, providing stable single-side support. It is suitable for cantilever scaffolding, wall-supported or temporary reinforcement for special structures. Drop Forged Single Coupler adopts a single-bolt fastening design, compatible with standard scaffold pipes of Φ48.3mm. It can be fixed to concrete/steel structures by matching tie rod or expansion bolts, and it can also be welded onto other accessories to achieve fixation.

Product name: Single coupler

Product Weight: 0.52KG
Process Technology:Drop Forged

Application:Connect scaffold tube with other accessories


Product Detail

Product Tags

Description:

Drop Forged Single Coupler designed to secure scaffold tubes to building structures (walls/beams/I-steels), serving as a critical component for cantilever systems.

Features:

Forged from Q235B alloy steel, featuring high hardness and strong compressive strength.

The parts are simple and easy to install.

Galvanized coating, Anti-corrosion and waterproofing, Can be reused multiple times

Zero structural damage, no welding/drilling required

Applications：

Building Construction

Securing I-beam ends in cantilever scaffolds

Replaces tie-back cables, saving 30% material cost

Underground Engineering

Tunnel sidewall bracing systems

Temporary platforms in subway stations

Industrial Maintenance

Chemical reactor inspection platforms

Power plant boiler access corridors


Type Drop Forged Single Coupler
Weight

0.52kg
Diameter 48.3mm
Material

Q235B steel
Surface Treatment Electro galvanized, Hot-dip-galvanized
Craft Drop Forged
Application Connet the scaffolding tube

Parameter:

Model Number:Scaffolding Couplers

Scaffolding Part Type:Scaffolding Couplers

Application:Building Construction

Advantage:Easy Installation

Color:Sliver

Standard:BS-1139/EN74

Surface:Zinc Plate

Usage:Construction Usage

Keyword:Scaffold Tube Connector




Selling Units:Single item

Single package size:25X25X25 cm

Single gross weight:30.000 kg

Supply Ability: 1000000 pieces per month

FAQ

  1. 1.Q:Why Choose Kosun scaffolding?
    A: At Kosun Scaffolding Group, an uncompromising commitment to quality inspires unparalleled service. With an experienced team of professionals and industry-leading capabilities, you can rely on us for exceptional support on all of your projects and promotions.

    2.Q: What's your packing methods?
    A: Packed into bundle, and rest in bulk.


    3.Q: What's your payment terms?
    A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/C 100%,or negotiate according to the order status.

    4.Q: Are you manufacturer or trader?
    A: We are the manufacturer of scaffolding materials for years, covered every scaffolding systems.
