Scaffolding push pull prop

Short Description:

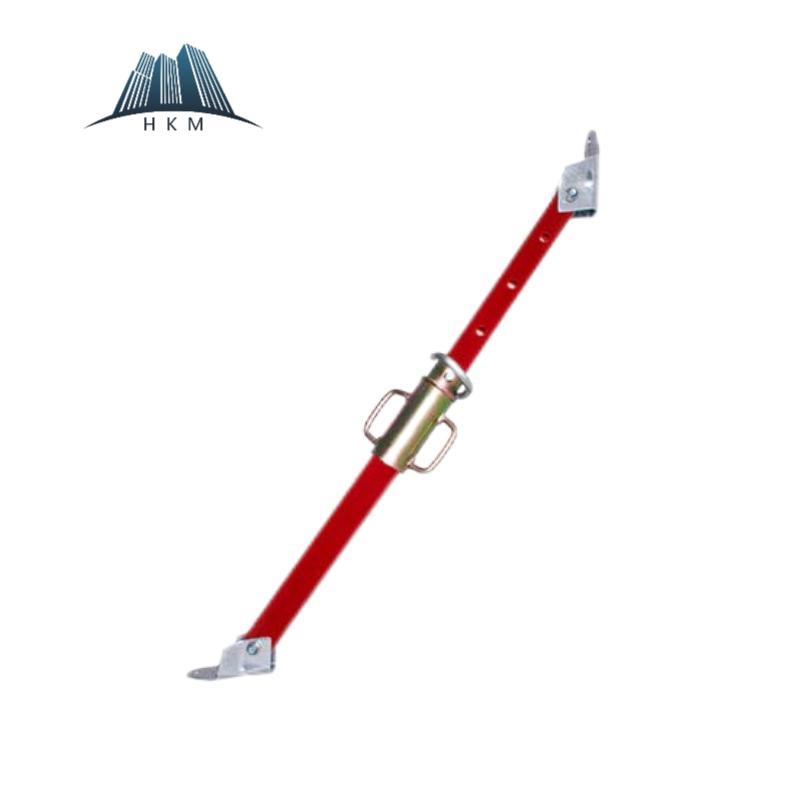

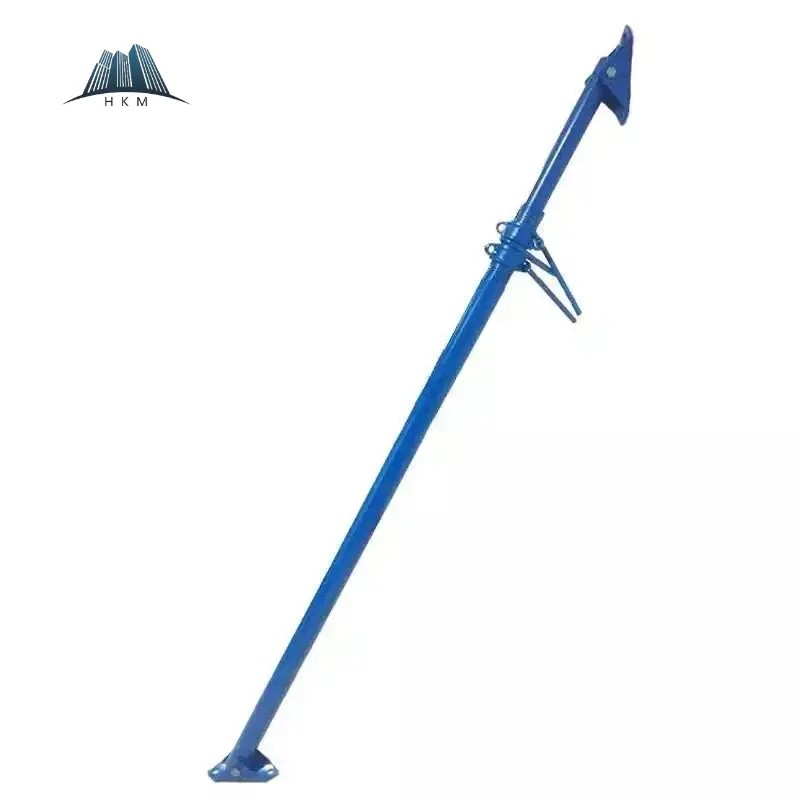

Scaffolding push pull prop consists of two telescopically slidable pipes. The outer pipe and inner pipe adopt a precision nesting design, ensuring flexible sliding during the telescoping process while maintaining structural stability, thus avoiding wobbling or jamming. Its displacement adjustment is achieved through the combined action of a threaded ring nut and a pin inserted into the hole of the inner pipe. The threaded ring nut allows for fine length adjustment, making the support length more precise, while the pin can firmly fix the two pipes after the position is adjusted, preventing relative displacement under stress. This dual protection ensures that the adjusted push pull prop is stable and reliable.


Product Detail

Product Tags

Description:

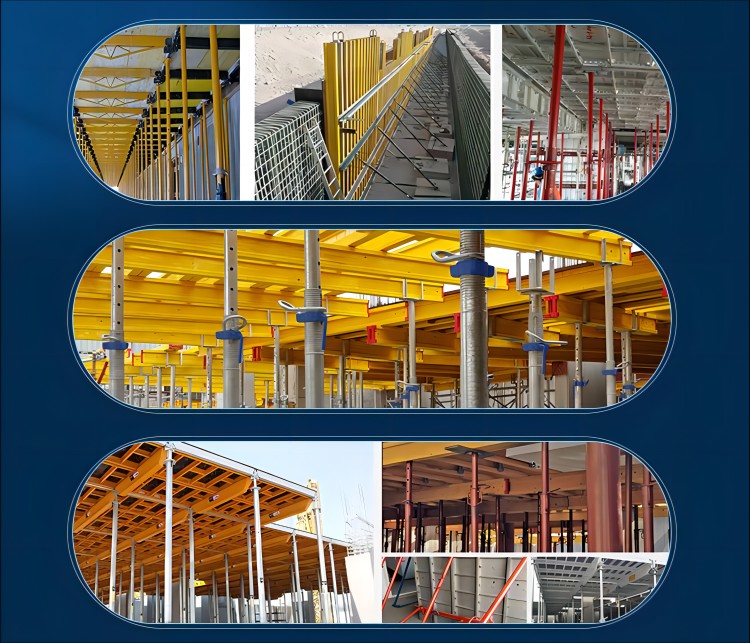

Scaffolding push pull prop used in conjunction with formwork, exhibit excellent synergistic efficiency. After the formwork is precisely erected in accordance with construction requirements, the push pull prop begin to play a key role: they can exert a stable outward thrust on the formwork, which can effectively resist the enormous lateral pressure generated during concrete pouring, providing solid supporting force for the formwork and ensuring that the formwork will not deform due to excessive stress. They also have a pulling function, capable of applying an inward pull to the formwork. For structures with large areas that require splicing of multiple formworks, this pulling function can make adjacent formworks fit closely, reducing splicing gaps, avoiding grout leakage during concrete pouring, and ensuring the forming quality of the concrete structure. In the pouring process, the cooperation between diagonal braces and formwork plays a crucial role in the temporary safety and stability of the structure, creating a safe working environment for construction workers and laying a solid foundation for the smooth setting and hardening of subsequent concrete.



Surface Treatment: Galvanized/Painted/ Powder coated/Hot dip galvanized

Standard: EN12810, EN74, BS1139, etc.

Base Plate:Square/flower



Middle East Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
2.2m 4.0m 48mm 60mm 1.5-4.0mm
2.5m 4.5m 48mm 60mm 1.5-4.0mm
3.6m 5.0m 48mm 60mm 1.5-4.0mm
Spanish Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 40mm 48mm 1.5-2.5mm
2.0m 3.6m 40mm 48mm 1.5-2.5mm
2.2m 4.0m 40mm 48mm 1.5-2.5mm
Italian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 48mm 56mm 1.5-2.5mm
2.0m 3.6m 48mm 56mm 1.5-2.5mm
2.2m 4.0m 48mm 56mm 1.5-2.5mm
North America Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
3'6''(1.06m) 6'(1.83m) 48mm 60mm 1.5-4.0mm
5'9''(1.75m) 10'3''(3.12m) 48mm 60mm 1.5-4.0mm
6'6''(1.98m) 11'(3.35m) 48mm 60mm 1.5-4.0mm
8'6''(2.59m) 13'(3.96m) 48mm 60mm 1.5-4.0mm
10'6''(3.2m) 15'6''(4.72m) 48mm 60mm 1.5-4.0mm
Australian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.1m 1.9m 48mm 60mm 1.5-4.0mm
2.1m 3.57m 48mm 60mm 1.5-4.0mm
2.1m 3.8m 48mm 60mm 1.5-4.0mm

Parameter:




Selling Units: Single item

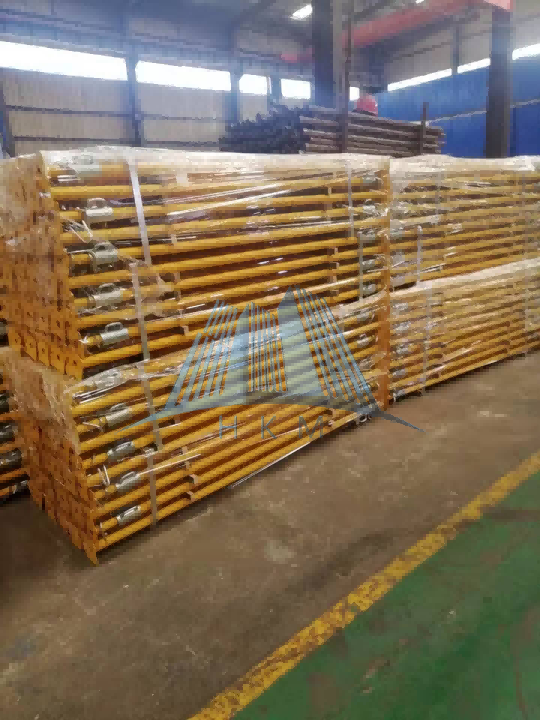

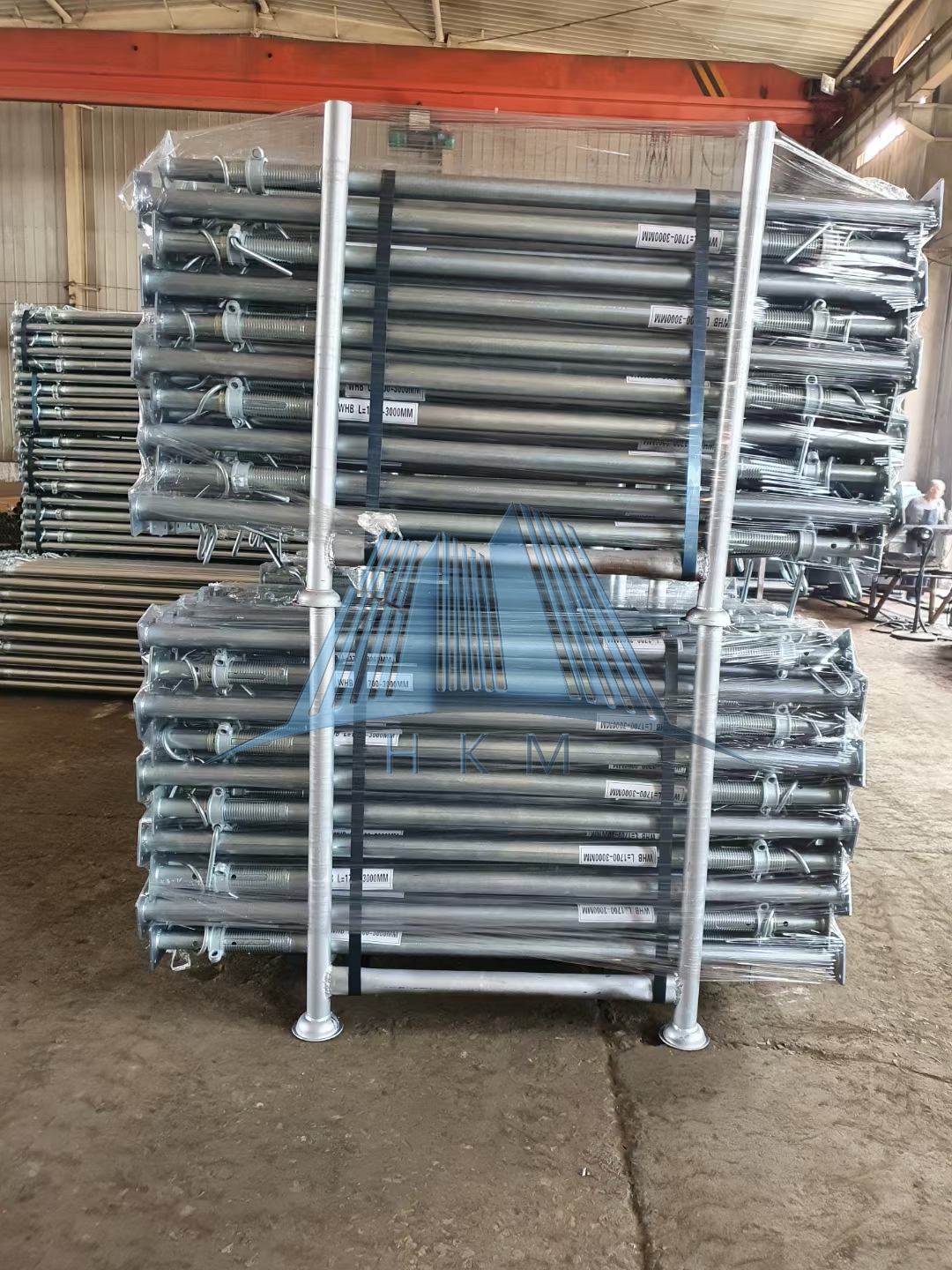

Single package size: 17x17x230cm

Single gross weight: 10.5kg

Supply Ability: 110000 pieces per month



FAQ


  1. 1.Q: How many countries you already exported ?

    A: Our products have been exported to more than 50 countries and regions, such as Southeast Asia, South America, Europe, Africa and many other countries and regions, and our products are competitive in price and high in quality, and have been well received by buyers in many countries. Markets in different countries have different needs and preferences. According to the characteristics of different market needs, we constantly optimize the product structure and improve the quality of service to meet the needs and expectations of more customers. All in all, as a company with more than ten years of experience, our company has successfully entered a number of international markets and achieved good sales performance in these markets.



    2.Q:Do you provide customized product services?

    A:Of course, we can design and produce the products you need based on your specifications and drawings. For example: special dimensions, special controls, OEM, etc.



    3.Q: How is your delivery time?

    A: The delivery time usually depends on the quantity of your order. You know, if the order is large, the delivery time will be a little slower.If the goods are less than 5000 pieces ,we can deliver the goods within 15 days. If you are hurry about this batch of goods, we will try our best to produce your batch. There are no special circumstances, we always deliver the goods on time.After shipment, we will provide you with logistics tracking information via email.



    4.Q:What are your company's main products ?

    A:Our main products are all kinds of scaffolding system,adjustable props(shoring system),frame system,cuplock system,steel pipe,coupler,steel plank,and scaffolding parts.We are a leading professional manufacturer of welded steel pipes before,Our factory was established in 2011, mainly responsible for domestic sales, in 2017, the company established a foreign trade department, mainly exported products.
