Pressed Swivel Coupler

Pressed Swivel Coupler

Short Description:

Pressed swivel coupler is mainly manufactured by the pressed process, which is used to connect the scaffold pipe in ant angles It plays a vital role in the scaffolding construction system, and can flexibly connect the pipes in different directions to meet the diversity of scaffolding structures. Pressed swivel coupler are mainly sold to Japan, South Korea and Southeast Asian countries. We usually distinguish them from the drop forged swivel couplers by using gold zinc plating. They come in various weight options and are more cost-effective compared to the forged swivel coupler. Moreover, depending on the bending angle of the coupler main body, we typically classify them into Japanese 110° pressed swivel coupler and Korean 90° pressed swivel coupler.



Product name:Pressed Swivel Coupler

Product Weight: 520/650g

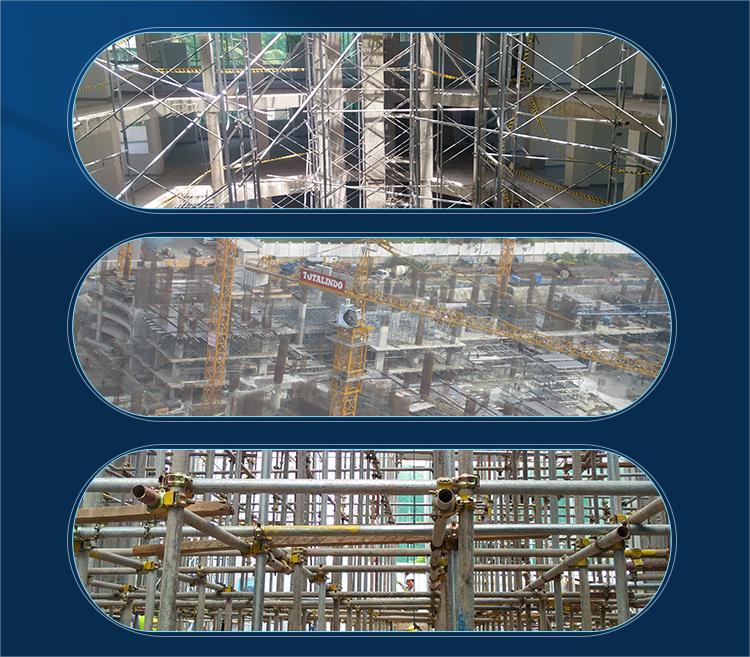

Application:Scaffolding construction

Advantage:Easy installation


Product Detail

Product Tags

Description:

Pressed swivel coupler are used in the construction of scaffolding, when two tubes need to be connected and there is a certain degree of freedom of rotation between the two tubes, pressed swivel coupler are used. First, a tubes is placed in the appropriate position, and then the main part of the pressed swivel coupler is placed on the tube, and the swivel part is aligned with the predetermined rotation direction. Then, the other tube is also placed in place so that the two tubes are in contact with different parts of the coupler. Then, tighten the connecting bolts and nuts so that the fastener tightly clips the two tubes.
Feature:
Flexibility of swivel function: Its outstanding feature is that it has a rotation function, which can make the two connected rods rotate flexibly within a certain range, which is very useful for building some scaffolding with irregular shapes and the need to adjust the angle of the tubes at any time according to the construction situation.
Connection firmness:pressed swivel coupler can still ensure that the connection between the two pipes is firm and reliable, and will not easily loosen when the scaffold is subjected to various loads.

Type

Pressed Swivel Coupler

Weight

580/620/650g

Diameter

48.6mm

Material

Q235B steel

Surface Treatment

Electro-galvanized

Craft

Pressed

Application

Connect scaffolding tube at any angle

Parameter:

Model Number:Pressed swivel coupler

Standard:JIS/KS

Scaffolding Part Type:Scaffolding Couplers

Material:Q235 steel

Finish:Pressed

Service:OEM/ODM

SIZE:48.3,48.6,42mm

Color:Yellow Zinc Plated

Type:swivel

Weight:0.58/0.62/0.65kg

Price:Competitive

Packing:in carton


Selling Units:Single item

Single package size:0.7X0.7X0.2 cm

Single gross weight:1.000 kg

Supply Ability: 1000000 pieces per month



FAQ

1.Q:What are the certifications for your products?
A:We have SGS,CE and other certifications.

2.Q:How long does your delivery time take?
A:In general, our delivery time is within 25-30 days, and may be delayed if the demand is extremely large or special circumstances occur.

3.Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.

4.Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging.
