Scaffold American Type Frame

Scaffold American Type Frame

Short Description:

Scaffold American Type Frame is a standardized scaffolding system widely adopted in North America, offering unparalleled stability and quality in the construction industry. It is a lightweight, easily detachable, reusable, and customizable scaffolding frame system designed to provide the highest level of safety and reliability. With its superior strength and high load-bearing capacity, the Scaffold American Type Frame enables faster and more efficient construction operations. This system is compatible with various American standard scaffolding accessories, allowing flexible combinations for large-scale construction projects such as commercial buildings and industrial plants. Thanks to its exceptional safety, stability, and convenience, it has become the preferred solution for high-altitude operations in the North American construction industry.


  • Product name: American mason frame
  • MOQ: 500 pieces
  • Color: Yellow/Red/Blue/Green/as your requirement
  • Design Style: Contemporary

Product Detail

Product Tags

Description:

Scaffold American Type Frame is a type of scaffolding system widely used in new construction, maintenance, and various repair projects. This system can quickly build multiple structural configurations through standardized connection methods, perfectly adapting to the special needs of different construction sites, significantly improving work efficiency and shortening the construction period. Compared with traditional scaffolding, the Scaffold American Type Frame is characterized by light weight and easy mobility, making it particularly suitable for construction sites and other working environments that require frequent adjustments and flexible layouts. The system provides a variety of professional locking pin accessories, including as flip lock pin, snap on lock, fast lock, v lock, c lock, Canada lock, ensuring stable and reliable connection of various components. In terms of structural design, the American-style frame can adopt two main forms: round tubes with cross braces or square tubes with cross braces. This diversified design allows it to be customized into various sizes and shapes according to specific engineering needs, perfectly realizing both simple linear structures and complex special-shaped structures. In addition, the Mason frame has excellent anti-corrosion performance and a long service life, making it an indispensable, efficient, safe, and economical working platform solution in modern construction.

Item Name Width*Height OD/Thickness(mm) Material Surface Treatment

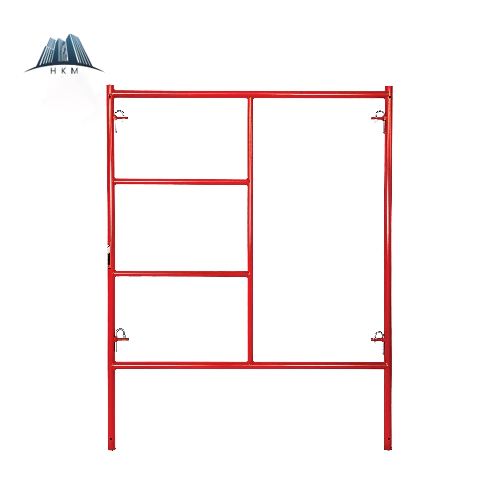

Walk through Frame 5'*6'7" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
Walk through Frame 3'*6'7" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
Walk through Frame 5'*6'4" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
Walk through Frame 5'*6'6" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
Walk through Frame 3'*6'4" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized

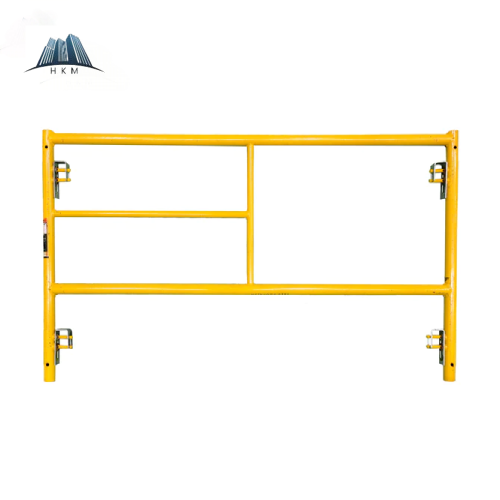

H Frame 5'*6'7" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
H Frame 5'*5'1" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
H Frame 5'*4'1" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized
H Frame 5'*3'1" 42.7*2.4/32*2.0 Q235/Q355 Powder coated/Galvanized


Parameter:

Model Number:Mason frame

Material:Q235, Q355

Certificate:SGS, CE

Finish:Powder Coating, Hot Dip Galvanized

Life span:About 5-10 years

Main tube thickness:1.8/2.0/2.2/2.4mm

Main tube diameter:42mm

Application:Construction Building


Selling Units: Single item

Single package size:30X40X20 cm

Single gross weight: 10.000 kg

Supply Ability: 60000 pieces per month



FAQ

1.Q: What information should I provide,if I want a lowest quotation?

A: The specifications of wire diameter. length, quantity, packing, etc.



2.Q: How does your factory do regarding quality control?

A: We use the best raw material,have at least 5 years experienced workers, the advanced machine and specialized team to assure the quality.

We perform Quality Control Inspections on 100% of our products.



3.Q: How is your delivery time?

A: We always prepare enough stock material for your urgent requirement.The delivery time is 10-15days for all the stock material. We will check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

4.Q: Could you provide sample?

A: Yes,we can provide sample together with our catalogue.
