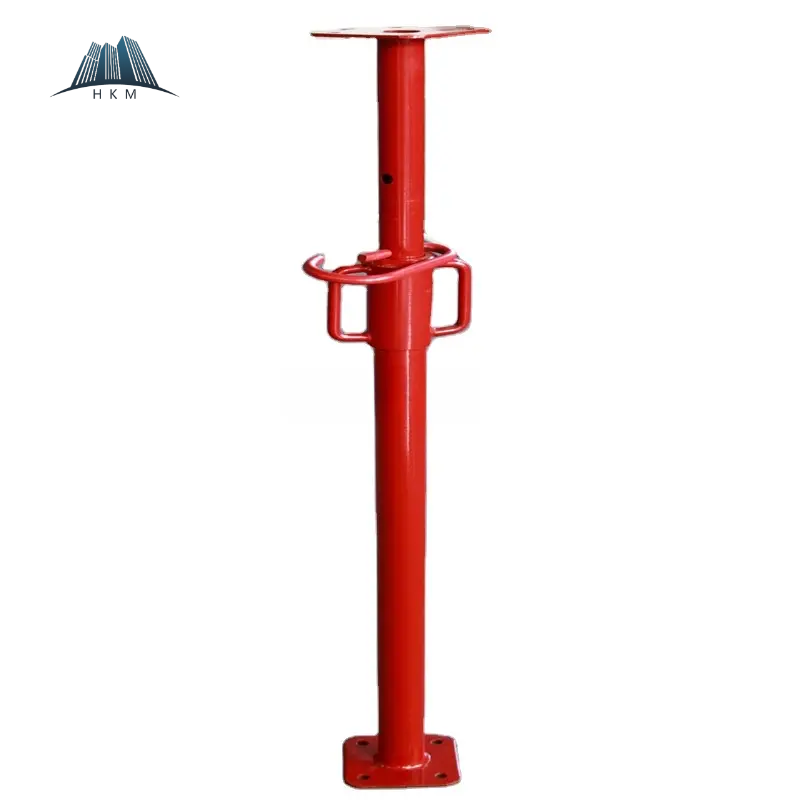

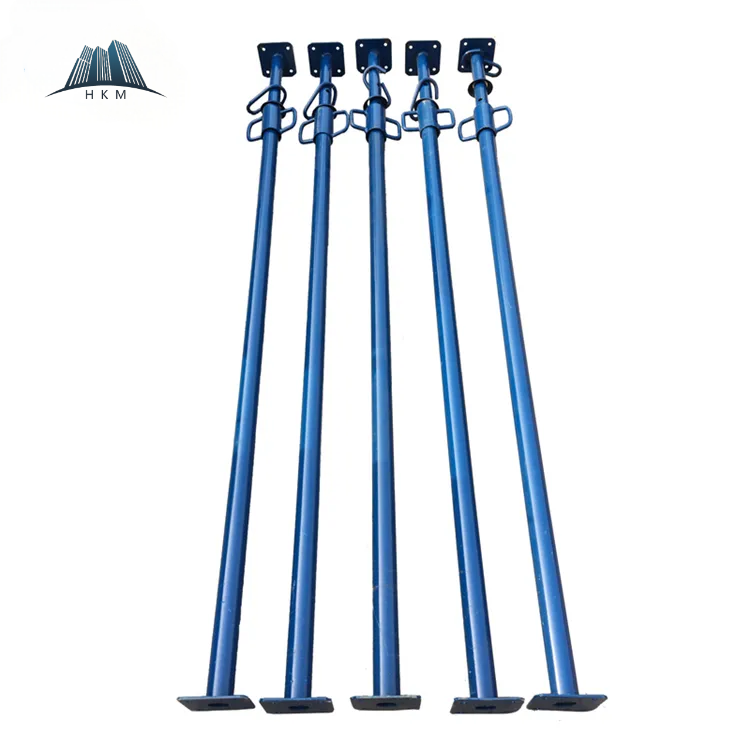

Robust 48/40 Steel Props

Robust 48/40 Steel Props

Short Description:

Robust 48/40 Steel Props is manufactured using high-quality Q195/Q235 steel and is equipped with automatic welding equipment to ensure that the quality meets your requirements. It comes with pipe diameters of 48mm and 40mm, with a steel pipe thickness ranging from 1.5mm to 2.5mm, and its length is adjustable. The surface can be customized with painted, galvanized, and other treatment processes, which not only provides anti-corrosion performance but also has visual identification. As an indispensable temporary support system in modern building construction, the steel prop, with its excellent strength, durability, and flexible adjustment performance, has become an important support solution for global construction projects.


Product Detail

Product Tags

Description:

Robust 48/40 Steel Props enables quick installation and precise adjustment. Coupled with multiple surface treatment processes such as hot-dip galvanized, painted, and pre-galvanized, it can perfectly adapt to various harsh construction environments, ranging from high-temperature deserts to high-humidity coastal areas. It can be customized according to requirements, and precise height adjustment is achieved through pin holes or thread mechanisms to meet different construction needs. The steel prop has a simple structure, strong stability, and a small footprint, which can meet the needs of various construction conditions. It features a large load-bearing capacity, allowing for quick installation, and can be timely adjusted in terms of support shape and structure according to construction requirements. Additionally, it is cost-effective, corrosion-resistant, has good earthquake resistance and wear resistance, has little impact on geology, and has an attractive appearance. It can change its shape and structure along with the construction progress, without the need for civil engineering construction, and is quick and flexible to install.

Adjustable Length:1.8-3.2m/2.0-3.5m/2.2-4.0m or customized

Outer tube diameter:60mm or 56mm or 48mm

Inner tube diameter:48mm or 40mm

Thickness:1.6mm-3.5mm



Middle East Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
2.2m 4.0m 48mm 60mm 1.5-4.0mm
2.5m 4.5m 48mm 60mm 1.5-4.0mm
3.6m 5.0m 48mm 60mm 1.5-4.0mm
Spanish Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 40mm 48mm 1.5-2.5mm
2.0m 3.6m 40mm 48mm 1.5-2.5mm
2.2m 4.0m 40mm 48mm 1.5-2.5mm
Italian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.6m 2.9m 48mm 56mm 1.5-2.5mm
2.0m 3.6m 48mm 56mm 1.5-2.5mm
2.2m 4.0m 48mm 56mm 1.5-2.5mm
North America Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
3'6''(1.06m) 6'(1.83m) 48mm 60mm 1.5-4.0mm
5'9''(1.75m) 10'3''(3.12m) 48mm 60mm 1.5-4.0mm
6'6''(1.98m) 11'(3.35m) 48mm 60mm 1.5-4.0mm
8'6''(2.59m) 13'(3.96m) 48mm 60mm 1.5-4.0mm
10'6''(3.2m) 15'6''(4.72m) 48mm 60mm 1.5-4.0mm
Australian Type Steel Prop
Min Height Max Height Inner Tube Outer Tube Tube Thickness
1.1m 1.9m 48mm 60mm 1.5-4.0mm
2.1m 3.57m 48mm 60mm 1.5-4.0mm
2.1m 3.8m 48mm 60mm 1.5-4.0mm

Parameter:


Selling Units: Single item

Single package size: 15x15x230cm

Single gross weight: 10.5kg

Supply Ability: 110000 pieces per month



FAQ

1.Q: How many countries you already exported ?

A: Our products have been exported to more than 50 countries and regions, such as Southeast Asia, South America, Europe, Africa and many other countries and regions, and our products are competitive in price and high in quality, and have been well received by buyers in many countries. Markets in different countries have different needs and preferences. According to the characteristics of different market needs, we constantly optimize the product structure and improve the quality of service to meet the needs and expectations of more customers. All in all, as a company with more than ten years of experience, our company has successfully entered a number of international markets and achieved good sales performance in these markets.



2.Q: Can I go to your factory to visit?

A: Of course,We welcome and look forward to your visit to the site and experience our production environment, processes and product safety.



3.Q: How is your delivery time?

A: The delivery time usually depends on the quantity of your order. You know, if the order is large, the delivery time will be a little slower.If the goods are less than 5000 pieces ,we can deliver the goods within 15 days. If you are hurry about this batch of goods, we will try our best to produce your batch. There are no special circumstances, we always deliver the goods on time.After shipment, we will provide you with logistics tracking information via email.



4.Q:Could you provide sample?

A:Yes, we provide free samples for your reference.And you need to pay the sample delivery fee. However, after you place a large order, we will refund the sample delivery fee to you
