Scaffold Steel Deck

Scaffold Steel Deck

Short Description:

Scaffold Steel Deck serves as a core component of elevated work platforms, primarily designed to provide safe and stable working surfaces. The hot-dip galvanized version utilizes Q235 hot-rolled black strip steel processed through high-temperature hot-dip galvanization, featuring a single-side zinc coating thickness of 210g/㎡ for exceptional corrosion resistance, while the pre-galvanized version employs Q195 hot-rolled galvanized strip steel directly formed with a double-side zinc coating thickness of 40g/㎡, making it an economical and efficient solution for conventional construction applications. The hook-free design offers flexible installation options, allowing for either bolted fixation or direct overlapping, ensuring compatibility with various scaffold systems. This product features a width of 210mm, height of 45mm, available in lengths ranging from 1m to 4m with thickness options between 1.0mm and 2.0mm, all customizable to specific requirements, and includes laser engraving/stamping marking services.


  • Length: 1-4m or customization
  • Customization: Accept
  • Performance: Durable, Strong Corrosion Resistance
  • Packing: Standard Package

Product Detail

Product Tags

Description:

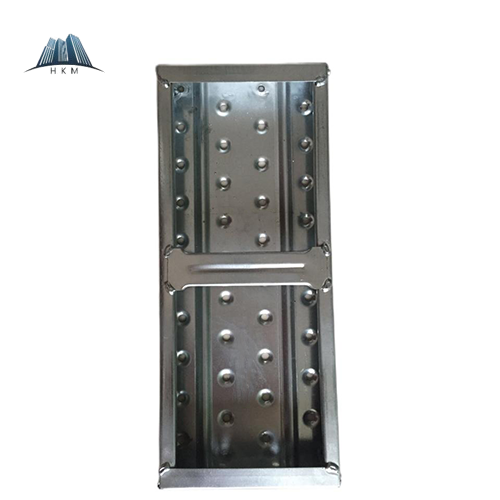

Scaffold Steel Deck serves as the core component of elevated work platforms, primarily designed to provide construction workers with safe and stable working surfaces. These hook-free scaffold planks are manufactured through precision roll-forming technology with scientifically optimized structural design. The specially designed anti-slip patterns on the surface effectively prevent slipping accidents, ensuring operational safety even under adverse weather conditions like rain or snow. The perimeter features either rolled edges or reinforced ribs, which not only prevent accidental foot slippage but also enhance the plank's load-bearing capacity and deformation resistance. The hook-free design ensures easy installation and broad compatibility with mainstream scaffold systems. Both ends undergo precision edge grinding to eliminate potential safety hazards. Specially designed drainage holes effectively prevent water accumulation and corrosion, extending service life. The product offers two anti-corrosion treatment options:hot-dip galvanized and pre-galvanized,catering to different long-term usage requirements in various corrosive environments. Standardized dimensional design ensures perfect compatibility with all types of scaffold systems, making them widely applicable in construction scenarios including residential buildings, industrial plants, bridges and tunnels, as well as equipment maintenance and exterior wall repairs. Strictly compliant with international safety standards, these planks provide reliable protection for elevated operations.

Metal Plank
Item No. Width Height Thickness Length
HKM-1028 210mm 45mm 1.0-2.0mm 1000-4000mm
HKM-1029 225mm 38mm
HKM-1030 230mm 63mm
HKM-1031 240mm 45mm
HKM-1032 250mm 40mm
HKM-1033 250mm 50mm
HKM-1034 300mm 50mm

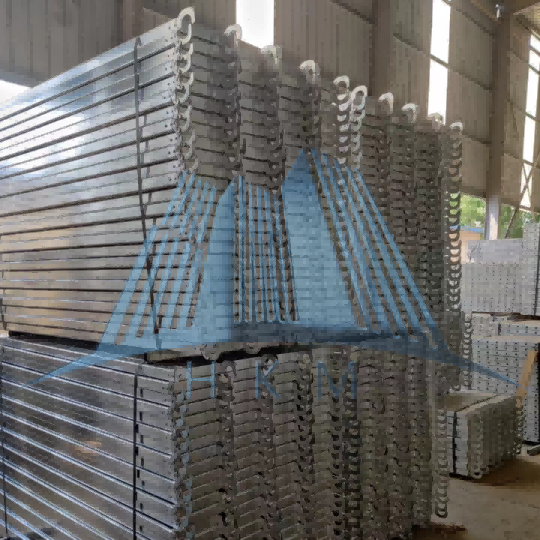

Catwalk (Metal Plank With Hook 43/50mm)
Item No. Width Height Thickness Length
HKM-1035 420mm 45mm 1.0-2.0mm 900-3000mm
HKM-1036 450mm 45mm
HKM-1037 480mm 45mm
HKM-1038 500mm 50mm


Parameter:

Product name:scaffolding walk board

Type:Scaffolding Parts

Usage:Building Construction

Color:Customized Color

Certificate:CE/SGS

Standard:EN74/BS1139/AS1576

Delivery Time :20-30 Days

Surface treatment:Galvanized

Payment Terms:30%TT Advance + 70% Balance

After-sale Service:Online technical support

Project Solution Capability:Total solution for projects

Application:Construction

Design Style:Modern


Selling Units:Single item

Single package size:300×50×1000mm

Single gross weight:4kg

Supply Ability: 110000 pieces per month



FAQ

1.Q: Are you a trading company or manufacturer?

A: Our company is a factory integrating production and sales. We can provide competitive prices and services.

2.Q: What is the material being used for your products?

A:Q195/ Q235/Q345 carbon steel

3.Q: What is the payment terms I can get?

A: TT or L/C at sight, DP etc.

4.Q: I like your design, but couldn't find the right model from the products list, is customized size available?

A: Yes, we do customized products and projects.

5.Q:How about your delivery time?

A: Our normal delivery time is about 25 ~30 days. Meanwhile, if there are any changes about it, then we will contact with you.
