Scaffolding H20 Beam

Scaffolding H20 Beam

Short Description:

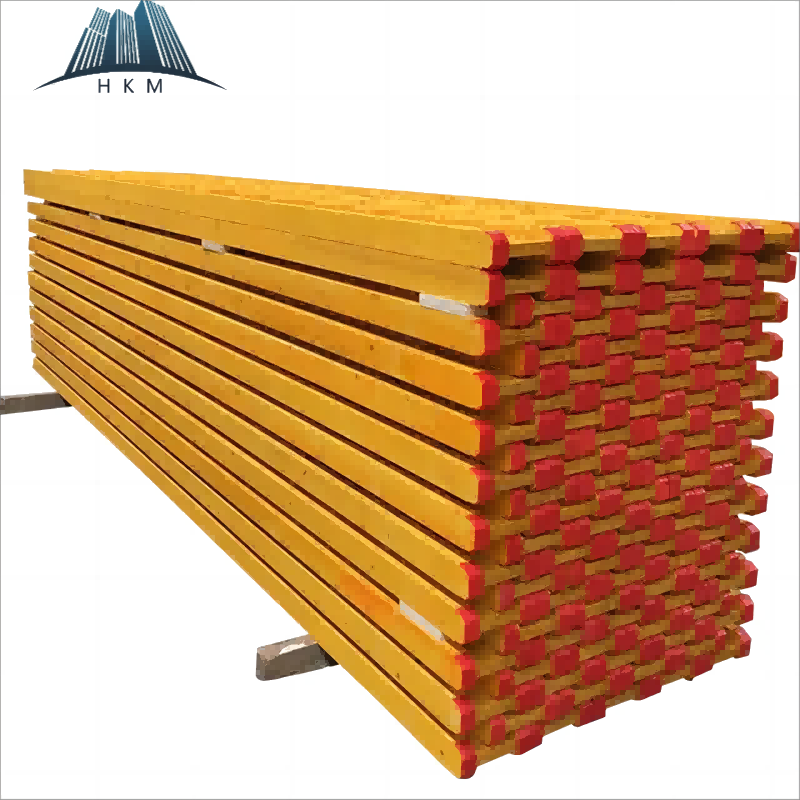

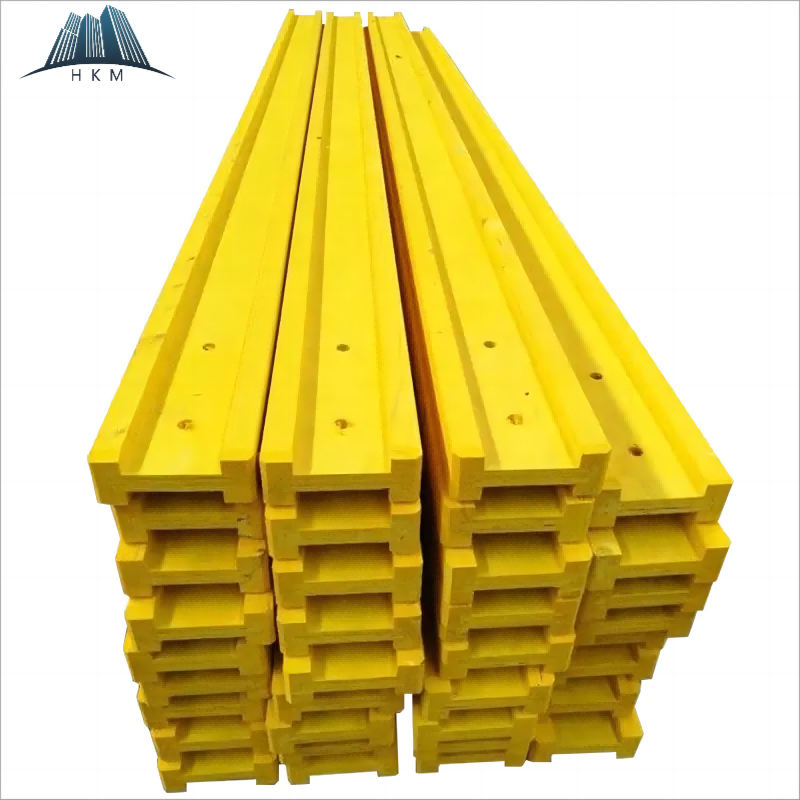

Scaffolding H20 Beam is a lightweight yet high-strength structural component widely used in construction projects. It features top-quality spruce or pine LVL (Laminated Veneer Lumber) flanges paired with multi-layer plywood webs, bonded together with waterproof phenolic resin to form an I-beam structure that combines the stability of solid wood with the load-bearing capacity of composite materials.Standard dimensions include a 200mm height, 80mm flange width,with customizable lengths (typically 1-6 meters). The surface is treated with yellow waterproof paint or latex paint, and the ends are fitted with moisture-proof caps, ensuring resistance to water, acids, alkalis, and insect damage.With excellent straightness and minimal warping, the H20 Beam is reusable for formwork support, scaffolding, bridge construction, and other applications. It is an eco-friendly, cost-efficient building material that meets sustainability standards.

Product Detail

Product Tags

Description:

Scaffolding H20  Beam plays a pivotal role in the construction sector, where its high strength, lightweight properties, and durability significantly enhance construction efficiency and structural stability. Below are its key features and application advantages:


Feature:
Durability: The H20 Beam undergoes specialized anti-corrosion treatment, effectively resisting moisture and environmental erosion to ensure long-term service life.
Easy Installation and Adjustment: Designed for quick assembly and disassembly, it seamlessly integrates with other support systems and formwork, greatly improving construction efficiency.
Eco-Friendliness: Manufactured from environmentally friendly materials that comply with sustainable building standards, it significantly reduces environmental impact.


Application:
Construction Support Systems: Widely used in formwork support, wall reinforcement, and beam strengthening to ensure structural stability during concrete pouring.
Formwork Bracing: Provides robust support in concrete formwork systems, preventing deformation or collapse during pouring.
Slab Support: Used in floor formwork support systems to precisely maintain slab dimensions and molding quality during concrete curing.




Beam depth(mm)

200mm

Flange width(mm)

80mm

Common length range(m)

1-6m



Parameter:

Place of Origin:China

Main Material:TIMBER/LVL/PLYWOOD

Brand Name: HKM

Item Name:H 20 Timber Beam

Solid Flange Material:High quality wood

Both End protective:Plastic or Galvanized Steel

Surface finish:Painting

MOQ:100 PCS

Certificate:CE, CARB, FSC, ISO9001

Weight:4.5kg/Meter

Standard Length:2.45/2.65/2.9/3.3/3.6/3.9/4.5/4.9/5.8m

Type of Use: For Concrete, Slab, Wall, Bridge, Table , Climbing Formwork etc



Selling Units:Single item

Single package size:110X110X60 cm

Single gross weight:60.000 kg

Supply Ability: 60000 pieces per month



FAQ

1.Q:What do you do?

A: We manufacture and scaffolding products to compose a optimum solution for scaffolding system in the field of housing, multi-story structure, high rise buildings, towers, sports stadiums, bridges, hydropower stations, industrial structures etc.

2.Q:What can you do for us?
A:We offer our suggestions, drawings of scaffolding system, and quotations to the owners, design institutes, or contractors of the construction projects.

We sell our products to the contractors, building companies, or trading companies.

We support our worldwide peer companies with our outstanding formwork or scaffolding products.

We provide remote or on-site instruction to the builders.

3.Q: How long dose it take to manufacture the products after the signing of contract?
A: In general, it takes 25-30 days based on the type and quantity of products to be produced.
