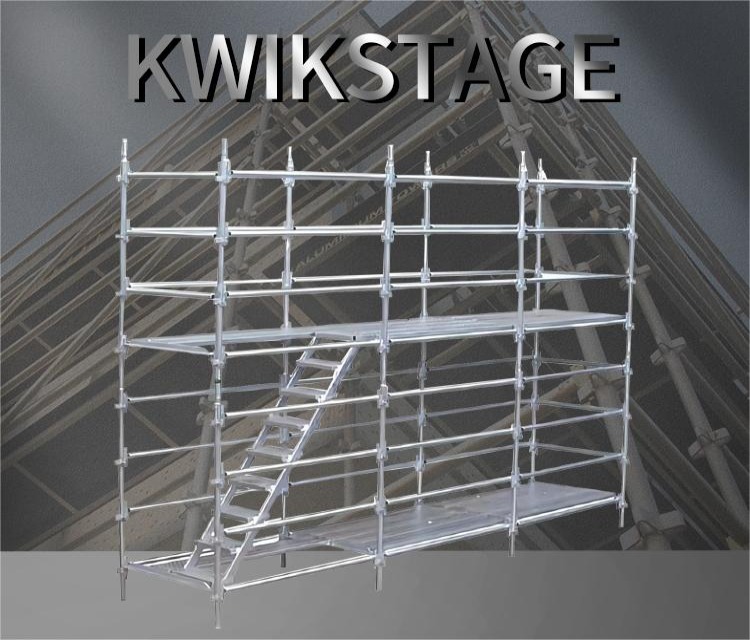

Kwikstage Scaffolding System

Kwikstage Scaffolding System

Short Description:

Kwikstage Scaffolding System is a highly efficient modular scaffolding system designed for strength and adaptability. Key components of the Kwikstage Scaffolding System include vertical standards, horizontal ledgers, transoms, diagonal braces, base jacks. Additional accessories can be integrated to enhance flexibility, ensuring the system meets the demands of diverse construction projects. Kwikstage Scaffolding System is renowned for its exceptional load-bearing capacity, making it ideal for heavy-duty applications in industrial, commercial, and infrastructure projects. Its unique locking mechanism ensures rapid assembly and disassembly, significantly improving productivity on-site. With its modular design and robust construction,Kwikstage Scaffolding System provides a reliable, safe, and cost-effective solution for high-performance support.


  • Surface Treatment: Painted/ Galvanized

Product Detail

Product Tags

Description:

Kwikstage Scaffolding System is one type of the modular scaffolding which is a type of system scaffolding that’s made up of multiple components that have been prefabricated. There are five primary parts and components of general Kwikstage scaffolding systems. These include: Standards, Basic Jacks, Hook-On Boards, Ledgers, and Diagonal Braces.The primary utility of the modular Kwikstage scaffolding system is that it allows for the platform to be altered to suit different shapes, allowing easier access to certain structures. This system is made up of several modular components that make it simple to modify the platform to suit the project as it changes. The Kwikstage scaffolding system has been explicitly designed so that it can be adapted to different situations and accommodate the changing needs of contemporary worksites.

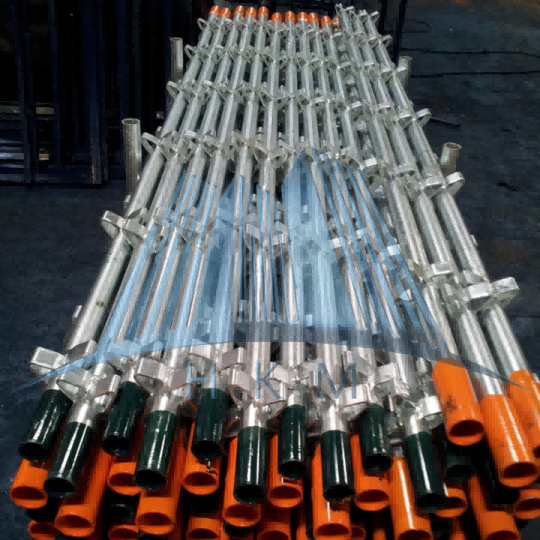

KWIKSTAGE STANDARD
ITEM NO. MATERIAL LENGTH FINISH STANDARD
HKM-1039 Q235, 48.3x4mm 3.0m Galvanized AS/NZS 1576
HKM-1040 Q235, 48.3x4mm 2.5m Galvanized AS/NZS 1576
HKM-1041 Q235, 48.3x4mm 2.0m Galvanized AS/NZS 1576
HKM-1042 Q235, 48.3x4mm 1.5m Galvanized AS/NZS 1576
HKM-1043 Q235, 48.3x4mm 1.0m Galvanized AS/NZS 1576
HKM-1044 Q235, 48.3x4mm 0.5m Galvanized AS/NZS 1576

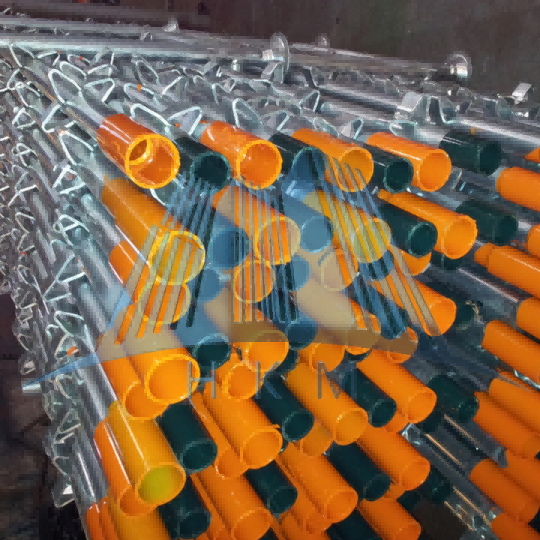

KWIKSTAGE LEDGER
ITEM NO. MATERIAL LENGTH FINISH STANDARD
HKM-1045 Q235, 48.3x3.2mm 2.4m Galvanized AS/NZS 1576
HKM-1046 Q235, 48.3x3.2mm 1.8m Galvanized AS/NZS 1576
HKM-1047 Q235, 48.3x3.2mm 1.2m Galvanized AS/NZS 1576
HKM-1048 Q235, 48.3x3.2mm 0.8m Galvanized AS/NZS 1576
HKM-1049 Q235, 48.3x3.2mm 0.7m Galvanized AS/NZS 1576
HKM-1050 Q235, 48.3x3.2mm 0.5m Galvanized AS/NZS 1576
KWIKSTAGE    TRANSOM
ITEM NO. MATERIAL LENGTH FINISH STANDARD
HKM-1051 Q235, 50x50x5mm 2.4M Galvanized AS/NZS 1576
HKM-1052 Q235, 50x50x5mm 1.8M Galvanized AS/NZS 1576
HKM-1053 Q235, 50x50x5mm 1.2M Galvanized AS/NZS 1576
HKM-1054 Q235, 50x50x5mm 1.0M Galvanized AS/NZS 1576
HKM-1055 Q235, 50x50x5mm 0.8M Galvanized AS/NZS 1576
HKM-1056 Q235, 50x50x5mm 0.7M Galvanized AS/NZS 1576
HKM-1057 Q235, 50x50x5mm 0.5M Galvanized AS/NZS 1576

Parameter:

Place of Origin: Tianjin, China

Products Name: Kwikstage/Quickstage Scaffolding

Brand Name: Kosun

Material: Q195 / Q235 / Q355 Steel

Color: Red/Silver/Customized Color

Size: OEM Size

Usage: Building Project

Advantage: Easy Assembling

Packing: Bundle

Surface treatment: Painted/Galvanized


Selling Units:Single item

Single package size:50x5x5cm

Single gross weight:4.0kg

Supply Ability: 800tons per month



FAQ

  1. 1.Q: Do you accept OEM service?

A: Yes! We can manufacture according to your requirements. We are the OEM supplier of many brands from Europe, America, Australia, Middle East, Southeast Asia and other Countries.



  1. 2.Q: What’s your delivery time?

A: Normally within 15-35 working days after received your payment in advance. It also depends on the quantity you need.



  1. 3.Q: How do you pack the products?

A: We can pack according to your requirements.



  1. 4.Q: Can you supply material certifications and test reports?

A: Yes. We can supply material certification and test reports upon your request.
