Frame Cross Brace
Description:
Frame cross brace is often combined with two diagonal supports in an X-shaped layout to form a stable force-bearing system. This design can efficiently disperse the lateral and vertical loads on the structure, significantly enhance the anti-deformation capacity of the building, and build a solid safety defense for the overall structure.
In terms of material selection, the cross braces are mostly made of high-strength steel. With excellent mechanical properties, they meet the strict requirements of building structures for load-bearing and tensile strength. Their surface treatment using pre-galvanized and painted can further enhance the anti-corrosion effect, ensuring long-term structural stability in humid, dusty and other complex environments.
When used in conjunction with scaffolding frames, it can accurately fill the weak points of force at the structural connection parts, make the load transmission of the entire support system more reasonable, and provide a solid guarantee for the safe use of the building. The installation of cross brace is highly flexible and can be adjusted according to different structural sizes and force requirements. During the installation process, through precise positioning and firm connection, it is ensured that they form an organic whole with diagonal supports, frames and other components, giving full play to the role of collaborative force bearing, so that the building structure can maintain a stable and reliable state under various working conditions.

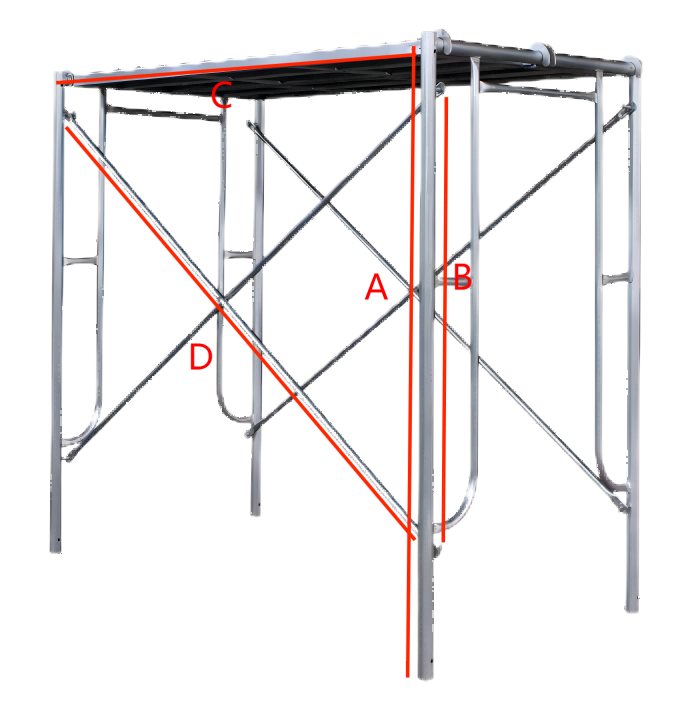

| Frame | A Frame Height |
B Distance of Lock Pin |
C Length of Catwalk |
D Length of Cross Brace |
Cross Brace Outer Diameter* Wall Thickness |
 |
1930mm | 1219mm | 1829mm | 2198mm | 21.3*1.1-1.5mm |
| 1700mm | |||||
| 1524mm | 914mm | 2045mm | |||
| 1219mm | 610mm | 1928mm | |||
| 914mm | |||||
| 1930mm | 1219mm | 1219mm | 1724mm | ||
| 1700mm | |||||
| 1524mm | 914mm | 1524mm | |||
| 1219mm | 610mm | 1363mm | |||
| 914mm | |||||
| 1930mm | 1219mm | 1524mm | 1952mm | ||
| 1700mm | |||||
| 1524mm | 914mm | 1219mm | |||
| 1219mm | 610mm | 1642mm | |||
| 914mm |
Parameter:
Warranty:1 year
After-sale service:Online technical support/Other
Design Style:Industrial
Project Solution Capacity:Graphic design/Other
Place of Origin:CHINA
Brand name:HKM
Product Name:Cross Brace
Color:Silver/Orange/Red/Blue/Green/Others
Technique:Electric Resistance Welding
Size:21.3*1.0*2189
Thickness:1.0-2.5mm
Material:Q195/Q235
Certification:CE SGS ISO9001
Surface Treatment:Painted/Powder Coated/Pre-Galvanized/Hot-Dipped Galvanized
Selling Units:Single item
Single package size:22*2200*4cm
Single gross weight:2.20kg
Supply Ability: 60000 pieces per month
FAQ
1.Q:What is the advantage of your company ?
A: We have own factory, which is located in Tianjin,China. We are a leading company in producing and exporting scaffolding products etc. We can produce and deliver your products in a very short time so that can save our cost.
2.Q: How about the price?
A: Really competitive! Our company is near the origin of steel and we have big order amount, so we get cheaper price of steel raw material; low labor cost and near Xingang sea port are also our advantages. The most of all,“less profit but big turnover” is our perpetual business principle.
3.Q: How about the quality of products in your company?
A: Our products are of high quality, and our products get lots of good feedback from our clients all over the world. We will make quality inspection before loading every time. And we usually keep our customer complaints below 1%.
4.Q: Could you provide free samples?
A: Of course, we can provide you with free samples.
