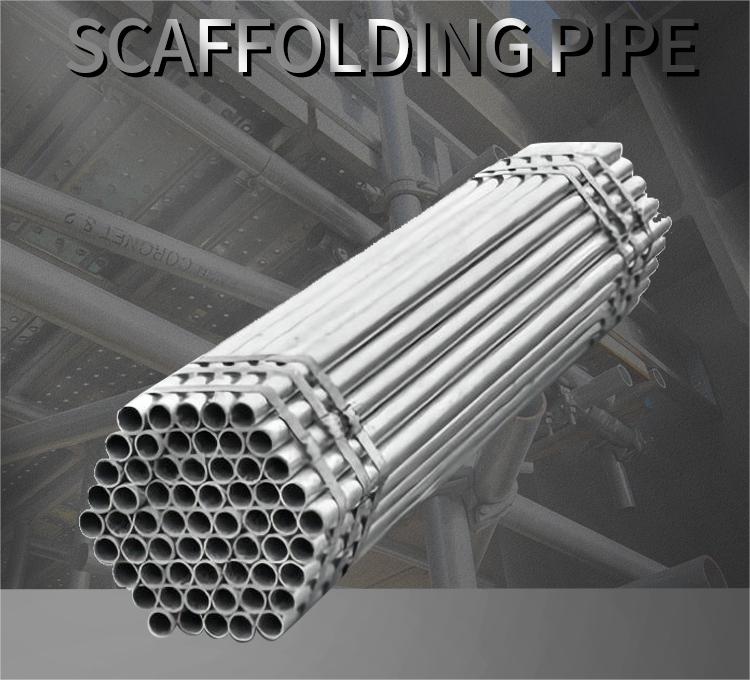

Q355/S355 Pre-galvanized scaffolding pipes
Description:

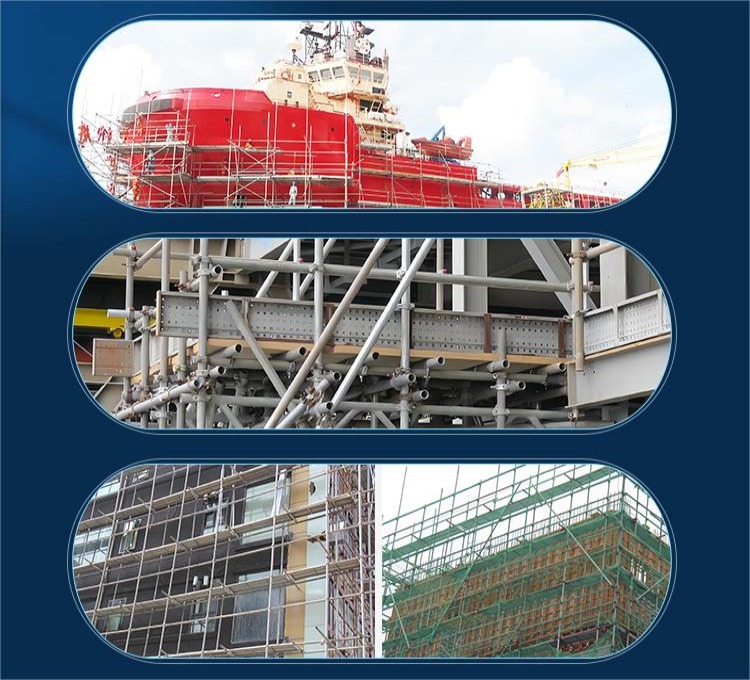

Q355/S355 Pre-galvanized scaffolding pipes, an assembly of steel pipes and durable couplers,offers essential load-bearing support in construction. Its adaptable connection system permits vertical, horizontal, and angular configurations, catering to various building shapes.The couplers in compliance with the high standard,are precision-engineered to create robust, secure connections between pipes.Crafted from high-strength steel with standardized welding, it delivers exceptional stability. It provides a reliable and high-performing scaffolding solution for any construction task.
Key Features & Benefits:
- 1.Modular & Adaptable Design,Adjustable connections enable quick assembly and disassembly, reducing labor time and improving efficiency.
- 2.Compliance with International Standards,Couplers meet EN 74, BS 1139standards, guaranteeing high clamping force and corrosion resistance.Pipesare long-term durability in harsh weather conditions.
 |
 |
| Scaffolding Pipes | ||||
| OD(mm) | Thickness(mm) | Length(mm) | Zinc Coating(g/m2) | Quantity/40CTN(pcs) |
| 48.3 | 1.80 | 6000 | 210-500g | 2100 |
| 48.3 | 1.90 | 6000 | 210-500g | 2000 |
| 48.3 | 2.00 | 6000 | 210-500g | 1900 |
| 48.3 | 2.10 | 6000 | 210-500g | 1800 |
| 48.3 | 2.20 | 6000 | 210-500g | 1750 |
| 48.3 | 2.30 | 6000 | 210-500g | 1700 |
| 48.3 | 2.40 | 6000 | 210-500g | 1600 |
| 48.3 | 2.50 | 6000 | 210-500g | 1550 |
| 48.3 | 2.75 | 6000 | 210-500g | 1400 |
| 48.3 | 3.00 | 6000 | 210-500g | 1250 |
| 48.3 | 3.10 | 6000 | 210-500g | 1250 |
| 48.3 | 3.25 | 6000 | 210-500g | 1200 |
| 48.3 | 3.50 | 6000 | 210-500g | 1100 |
| 48.3 | 3.60 | 6000 | 210-500g | 1100 |
| 48.3 | 3.75 | 6000 | 210-500g | 1050 |
| 48.3 | 3.85 | 6000 | 210-500g | 1000 |
| 48.3 | 4.00 | 6000 | 210-500g | 1000 |
| Hot-Dip Galvanized Steel Pipes | |||||||||
| INCH | OD | Standard Wall Thickness | |||||||
| (MM) | SCH 10 | SCH 20 | SCH 40 | SCH 60 | SCH 80 | SCH 100 |
SCH 160 |
XXS | |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 1/4" | 13.70 | 2.24 | 3.02 | ||||||
| 3/8" | 17.10 | 2.31 | 3.20 | ||||||
| 1/2" | 21.30 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | |||
| 3/4 | 26.70 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | |||
| 1" | 33.40 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | |||
| 1-1/4" | 42.20 | 2.77 | 3.56 | 4.85 | 6.35 | 9.70 | |||
| 1-1/2" | 48.30 | 2.77 | 3.68 | 5.08 | 7.14 | 10.15 | |||
| 2" | 60.30 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 | |||
| 2-1/2" | 73.00 | 3.05 | 5.16 | 7.01 | 9.53 | 14.02 | |||
| 3" | 88.90 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | |||
| 3-1/2" | 101.60 | 3.05 | 5.74 | 8.08 | |||||
| 4" | 114.30 | 3.05 | 4.50 | 6.02 | 8.56 | 13.49 | 17.12 | ||
Parameter:
Place of Origin:Tianjin, China
Alloy Or Not:Non-Alloy
Grade:S235JR, S275JR, STK400, STK500,S235GT
Delivery Time 15-21 days
Brand Name:HKM
Application:Structure Pipe, Other
Special Pipe:Thick Wall Pipe, Other
Thickness:1-4.0mm
Length:6000mm or customized
Certificate:ISO9001
Payment:T/T (30% Deposit)or LC
Company Advantage:Strong Production Capacity
Shipment:Break Bulk/20GP/40GP/40HQ
 |
 |
Selling Units:Single item
Single package size:20X20X20 cm
Single gross weight:1.000 kg
Supply Ability: 400000 pieces per month
FAQ
1.Q:Can I visit your company and factory in China?
A:Sure. You are very welcomed to visit our company.We'll arrange for professional staff to accompany you on the tour.
2.Q:How Can I place an order?
A:You can contact us through our website, we will answer you within 24 hours.And then we will give you our quotation and consult with you on the next step.
3.Q:How about the after-sales service?
A:We do 100% inspection during production and before packaging.If there is any problem with functional and quality,we'd like to provide a
replacement in the next order.
