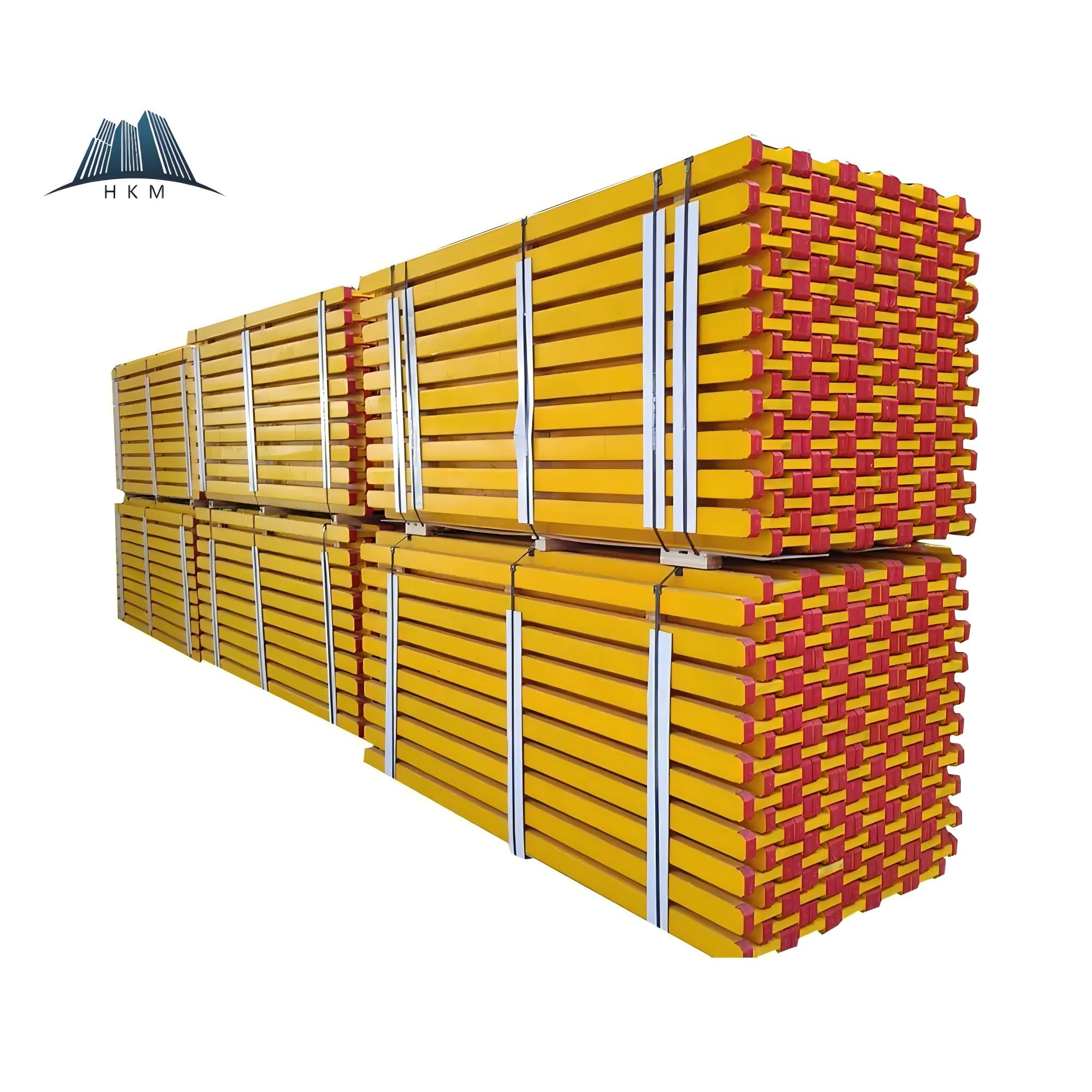

H20 Wood Beam

H20 Wood Beam

Short Description:

H20 Wood Beam is a commonly used support component in construction engineering, characterized by light weight and high strength. Its flanges are made of high-quality spruce or pine LVL (Laminated Veneer Lumber), and the web is made of multi-layer plywood. They are bonded into an I-shaped structure with waterproof phenolic glue, thus having both the stability of solid wood and the load-bearing capacity of composite materials.Its standard specifications are as follows: height 200mm, flange width 80mm, flange thickness 40mm; the length can be customized according to needs, with 1-6 meters being a common range.To enhance durability, the surface of H20 Beam is painted with yellow waterproof paint or latex paint, and the ends are also equipped with moisture-proof sheaths, which enable it to have properties such as water resistance, acid and alkali resistance, and insect resistance. In addition, it has good straightness, is not easy to deform, and can be reused in scenarios such as formwork support, scaffolding, and bridge construction. It is a cost-effective construction material that meets environmental protection standards.

Product Detail

Product Tags

Description:

H20 Wood Beam, a lightweight and high-strength wooden I-beam support component, plays an important role in modern construction engineering. With its excellent load-bearing performance, stable structural characteristics and convenient construction adaptability, it is widely used in formwork support and structural reinforcement during the concrete pouring stage, effectively improving construction efficiency and ensuring project quality.
In various construction, bridge and municipal engineering projects, H20 Beam is often used for vertical support of wall and column formwork, horizontal bearing of floor formwork and construction of temporary scaffolding systems. Its standardized design makes installation and turnover more efficient.At the same time, the product uses environmentally friendly and durable LVL materials and moisture-proof technology, which not only adapts to complex construction environments such as humidity, acid and alkali, but also can be recycled for many times. It takes into account economic benefits and sustainable development needs, and has become an indispensable cost-effective support material in modern construction.



Beam depth(mm)

200mm

Flange width(mm)

80mm

Common length range(m)

1-6m



Parameter:

Brand name:HKM

Product Name:H20 BEAM

Material:TIMBER/LVL/PLYWOOD

Color:Red/Yellow/Others

MOQ:100 pcs

Length:3000-5900mm

Certification:CE SGS ISO9001
Usage:Outdoor Formwork Systems

Advantage:Long Lifespan

Keywords: h20 beam, wooden beams, timber beam



Selling Units:Single item

Single package size:20x10x30cm

Single gross weight:1.0kg

Supply Ability: 150000 pieces per month



FAQ

1.Q: Are you factory or trader?
A: We are factory manufacturer more than fifteen years.

2.Q: How about your delivery time?
A: About 25 to 30 days after receiving the deposit.

3.Q: Can we visit your factory?
A: Of course, you are warmly welcomed to visit at any time.

4.Q: How about your payment mode and sample?
A: Normally by T/T and L/C, it's negotiable. And we can provide free sample, but you should pay the freight.
