Putlog Coupler

Putlog Coupler

Short Description:

Putlog coupler usually consists of two main parts, a rotatable clamp similar to the shape of a "pig ear" and a fixed part with a bolt or screw.Putlog coupler are made of Q235B steel, just like ordinary coupler, they have excellent compressive and anti-slip properties. The surface is galvanized, which is not only aesthetically pleasing but also protects against corrosion and extends the service life.

 Putlog couplers are mainly used for connecting the steel pipes of the horizontal and vertical scaffolding. They have a similar function to the right-angle coupler but are more cost-effective. However, their compressive and anti-slip properties are not as good as those of the right-angle coupler because one side of it is not fixed with a bolt. So they only can be used in the construction of scaffolding when the requirements for compressive strength and bearing capacity are not so high and in non-critical nodes.



Product name: Putlog Coupler

Product Weight: 0.63KG

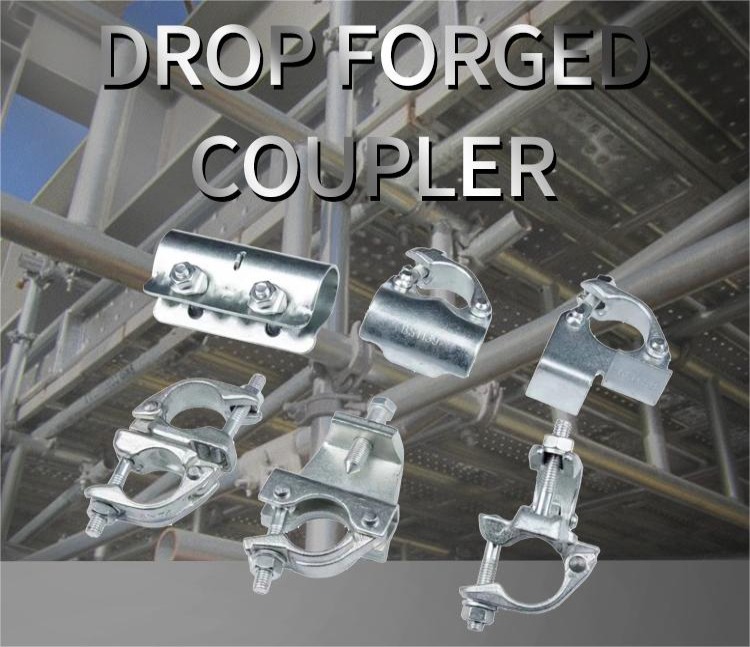

Process Technology:Drop Forged

Application:Connect two scaffold tube


Product Detail

Product Tags

Description:

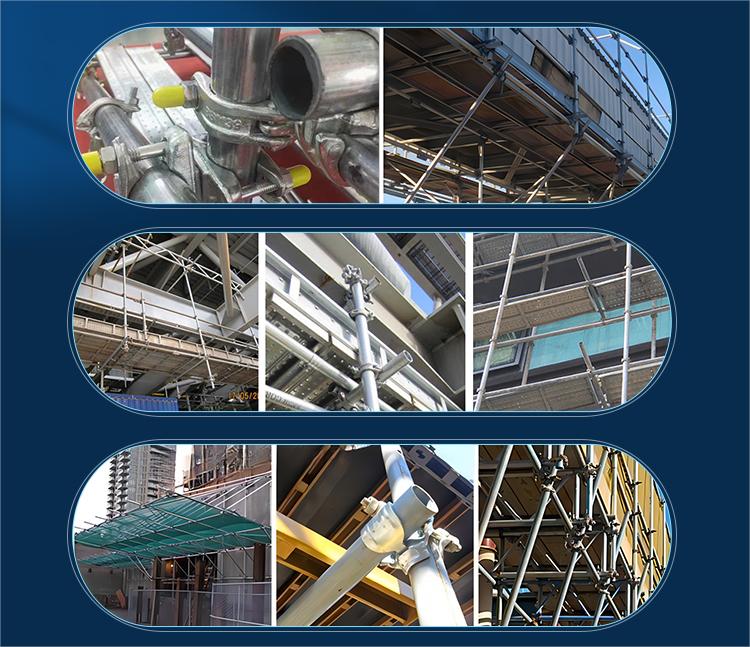

Putlog coupler is mainly used in the scaffolding construction of all kinds of construction projects, whether it is the construction of high-rise buildings, the construction of industrial plants, or the repair of some small buildings, etc., as long as it is necessary to build scaffolding to assist the construction, putlog coupler are likely to be used, which is an important connection component to ensure that construction personnel can work safely at a height.
Feature:
Convenient installation: Compared with some other types of coupler, the installation operation of putlog coupler is relatively simple, does not require complex tools and too much professional skills, and workers can complete the installation work relatively quickly, improving the efficiency of scaffolding construction.
Strong connection: As long as the bolt or screw is tightened according to the correct installation method, a more stable connection between the two steel pipes can be achieved, which can effectively ensure the safety and stability of the scaffold during use.
Strong versatility: It can be applied to a variety of different specifications of scaffold steel pipes, and can play a role in different construction scenarios.

Type

British Drop Forged Putlog Coupler

Weight

0.63kg

Diameter

48.3mm

Material

Q235B steel

Surface Treatment

Electro-galvanized, Hot-dip-galvanized

Craft

Drop Forged

Application

Connect scaffolding horizontal and vertical tube

Parameter:

Model Number:BS1139 British Forged Putlog Coupler

Scaffolding Part Type:Scaffolding Couplers

Product name:Drop forged putlog scaffolding coupler for 48.3mm pipe

Process:Drop forged

Surface:Galvanized and zinc plate

Standard:BS1139,JIS

Type:putlog coupler

Material:Q235

Surface treatment:Electro Galvanized

Usage:Construction Usage

Packing:Pallet


Selling Units:Single item

Single package size:30X20X20 cm

Single gross weight:6.800 kg

Supply Ability: 1000000 pieces per month



FAQ

  1. 1.Q:Are you a manufacturer?

    A:Yes,we are a manufacturer,not agent.We have own factory,which is located in TIANJIN,CHINA.We have a leading power in producing and exporting.

    2.Q:What is your MOQ?

    A:Any quantity is acceptable, and when the quantity is less than 5 tons per size,we'll supply from our stock.

    3.Q:Is third inspection on welded steel pipe acceptable?

    A:Yes.

    4.Q:Do you have other relative production?

    A:We can provided on-stop services we have scaffolding steel props /ringlock system/steel pipe/ steel plank/coupler/base jack.

    5.Q:Can provide OEM/ODM service?

    A:Yes.Please feel free to contact us for more details discuss.
